TMIB249-267 – SINGLE PHASE ISOLATION TRANSFORMERS for for HiFi, professional A/V systems and laboratory applications
SINGLE PHASE ISOLATION TRANSFORMERS for for HiFi, professional A/V systems and laboratory applications
Dual Balanced Output technology
isolation transformer with balanced output with Dual Phase + Ground
Very low noise and minimal leakage flow
thanks to the copper electrostatic shield connected to ground and output 115V + 115V + Earth balanced and compatible with any electronic component
Discharges mains noise and harmonics generated by downstream components of the system to the ground
Ideal for HiFi, professional A/V systems and laboratory applications
naturally cooled in air type AN, impregnated in resin and tropicalized.
Separate windings in electrolytic COPPER
ELECTROSTATIC COPPER SHIELD BETWEEN PRIMARY AND SECONDARY GROUNDED
SPECIFICATIONS
| Rated Power: | 3000-4000VA |
| Input Voltage: | 230V |
| Output Voltage | 230V (115V+115V) |
| Frequency: | 50/60 Hz |
| Degree of protection of the transformer only: | IP00 |
| Protection class: | I |
| Thermal insulation class: | F |
| Thermal Winding Class: | F-H |
| Ambient temperature: | 40°C |
| Max over-temperature rise: | < 60°C |
| Max Voltage Drop: | 3% |
| Short Circuit Voltage: | 5% max |
| Efficiency | > 97% |
| Cooling | AN |
| Max relative humidity (non-condensing) | 95% |
| Operating Altitude | up to 1000 m without derating |
| EEC Directives | Dir. 2014/35/EU – Dir. 2014/30/EU (EMC) |
| Standards applied: | EN 61558-1, EN61558-2-4 |
characteristics

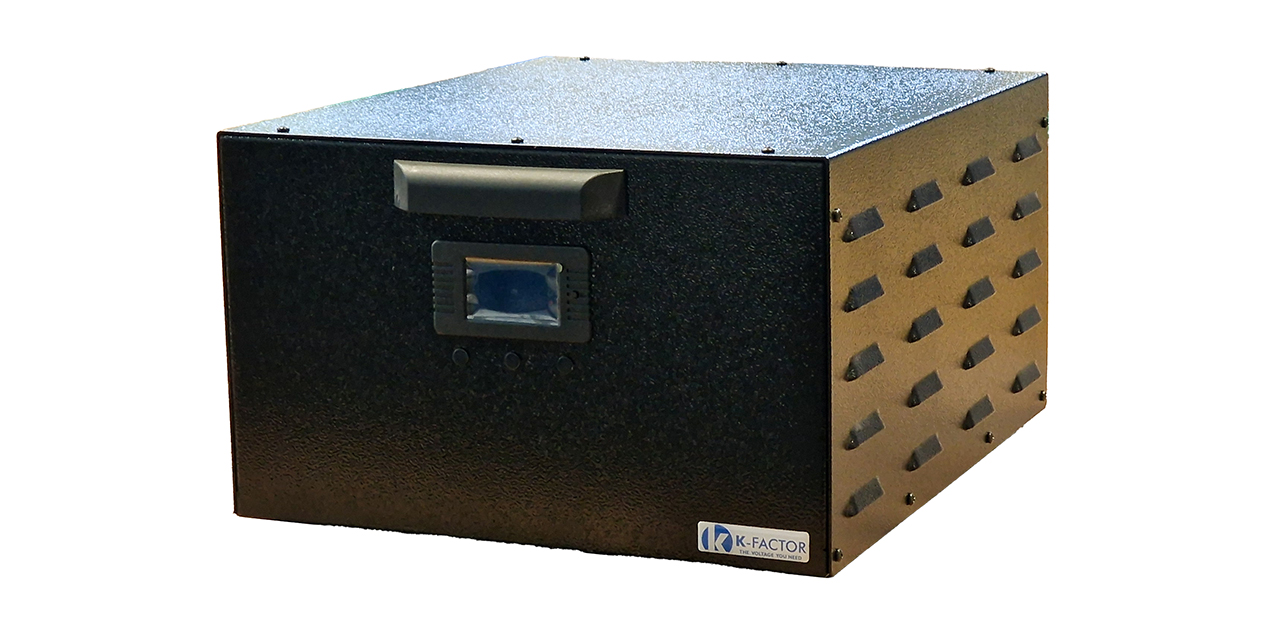

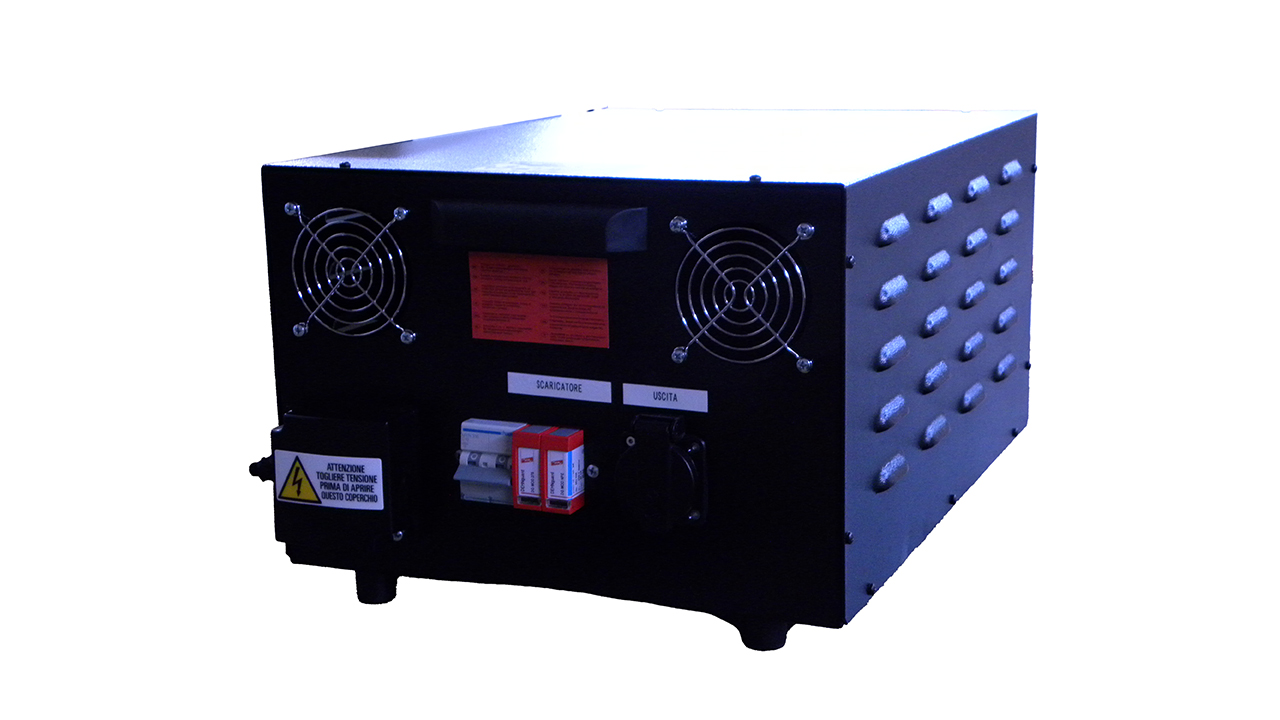

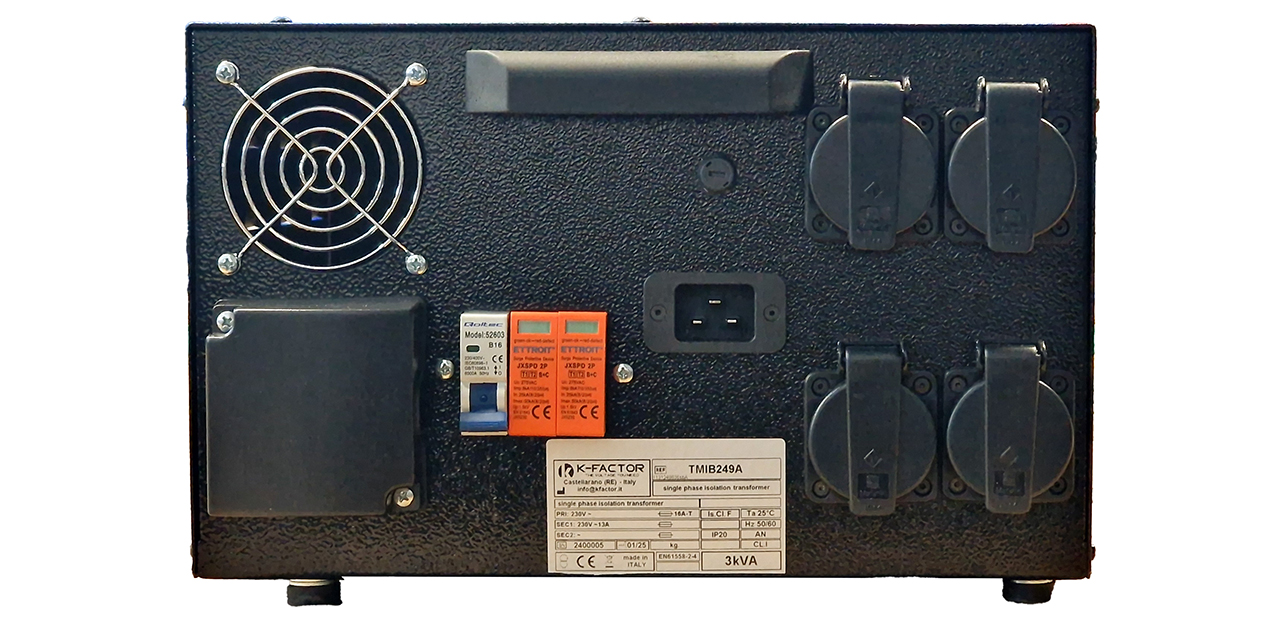

MOUNTED IN IP21 CLOSED METAL ENCLOSURE
BLACK RAL9005 POWDER COATED
LIFTING HANDLES
1P+N INPUT CIRCUIT BREAKER
INPUT TERMINAL BLOCK
THERMAL PROTECTION/C.C. RESETTABLE ON TRANSFORMER PRIMARY
Rating label, manual, CE certificate
DIGITAL VOLTMETER WITH OUTPUT VOLTAGE/CURRENT/POWER/COS-PHI/ENERGY READING
MULTIPLE 5 OUTLET SOCKET
Output fuse of adequate capacity for maximum power
Surge arrester
