MSN-FC – SINGLE-PHASE FREQUENCY CONVERTERS FROM 5,4KW TO 9KW
FREQUENCY CONVERTERS On line single-phase double conversion MSN SERIES
The ideal product for powering loads that require a power supply at a voltage and frequency different from the mains supply available at the installation site.
On-line double conversion with DSP (Digital Signal Processor) digital control technology.
Among the main features that make this series high efficiency we point out:
- High PF input and output
- Wide input tolerance range (energy saving)
- Energy return protection and dedicated filtering (Surge Protection)
- Monitoring and self-diagnosis at each switch-on
- USB port
- EPO Contact
- Software included
- Intelligent SNMP Network Card Slot

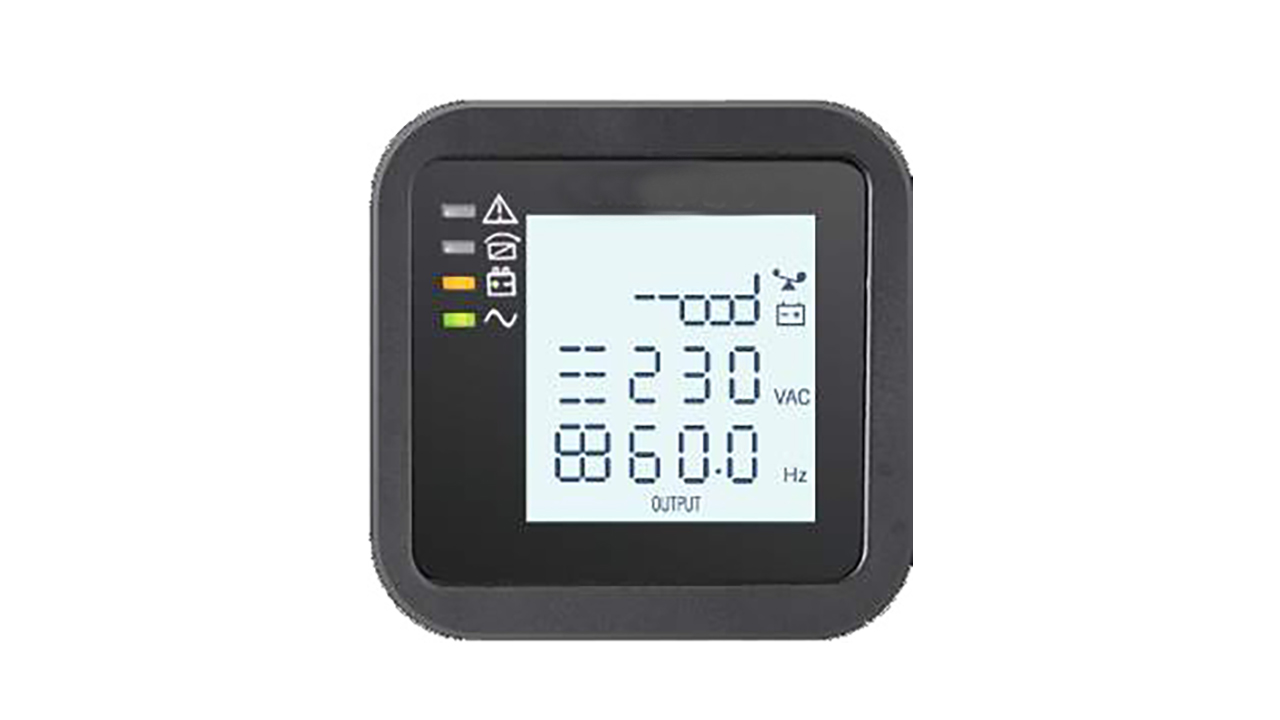

The MSN series is produced with an LCD display from which the operating parameters (more than 50 items) can be displayed, and from where it is possible to set the basic configurations.

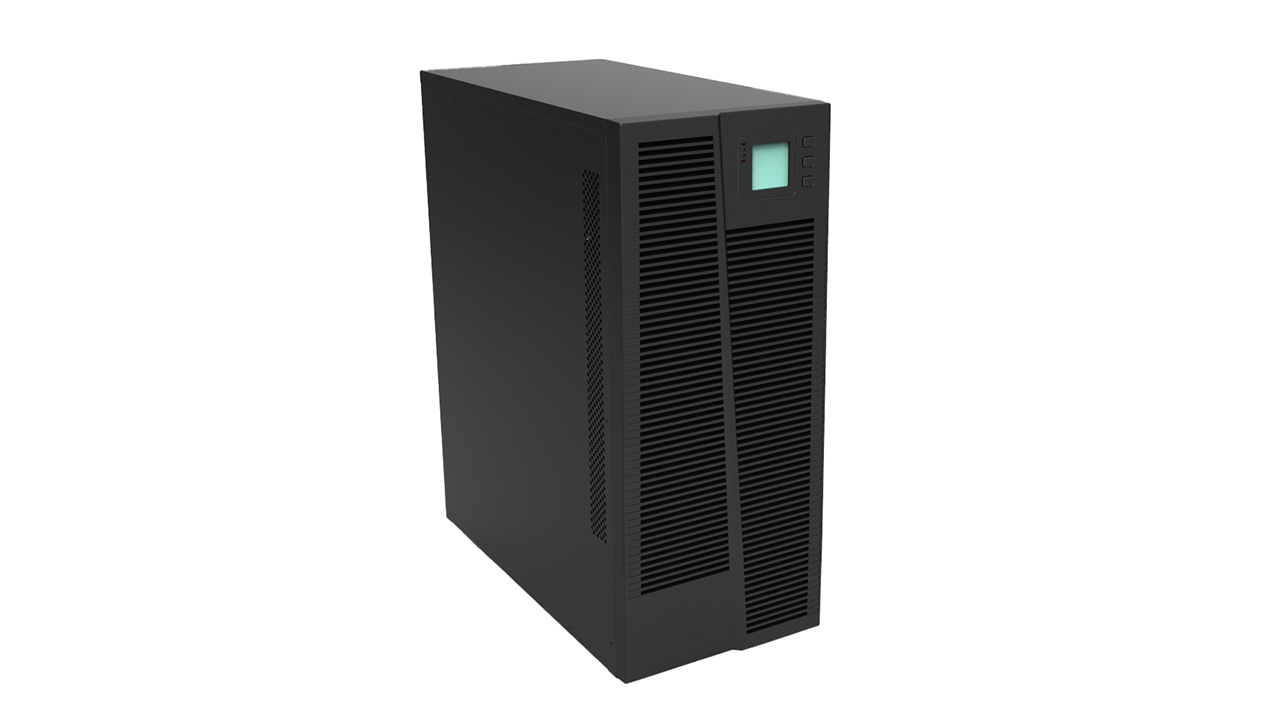

Thanks to its compact size, it meets the demand for power in small spaces and is suitable for any type of installation.
It is a system with online double conversion technology and is available from 6 kVA to 10 kVA with different single-phase voltages available on request. It is available in the standard version without transformer and on request there is the possibility of adding it in an external cabinet.
The 0.9 power factor combined with DSP (Digital Signal Processor) technology offers high power and output efficiency to all loads.
Multi-level alarm stages
All models are equipped with a USB connector for computer communication and dialogue via USB signals
| Model | MSN06FC | MSN10FC | |
| RATED POWER | 6000VA / 5400W | 10000VA / 9000W | |
| Input | Input | Single-phase | |
| Power factor | ≥ 0.8(THDV input ≤1%) | ||
| Rated voltage | 220VAC / 230VAC / 240VAC
(optional 110V input, available on request) |
||
| Rated frequency | 50Hz/60Hz Automatic Selection | ||
| Voltage range | 120~276Vac ～ | ||
| Frequency range | 45~65Hz | ||
| Thdi | ≤3% (100% linear load, THDV input ≤1%) | ||
| ≤5% (100% nonlinear load, THDV input ≤1%) | |||
| Output | Output type | Single phase | |
| Voltage adjustment | ±1.0% | ||
| Power factor | 0.9 | ||
| Voltage Distortion (THD) | Less than 2% with 100% linear load | ||
| Less than 5% with 100% nonlinear load | |||
| Frequency | 50Hz or 60Hz (programmable) | ||
| Nominal voltage | 220V/230V/ 240Vac selectable or others on request | ||
| Frequency adjustment | ±0.1% (single unit) | ||
| ±0.25% (units in parallel) | |||
| Frequency | 50Hz or 60Hz depending on the required setting | ||
| Frequency synchronization | 1Hz/s (single unit) | ||
| 0.5Hz/s (parallel drive) | |||
| Acceptable Overload | 105 % ~ 110 %, for max 1h | ||
| 110% ~ 125%, for max 10 min | |||
| 125% ~ 150%, for max 1 min | |||
| >150% switch off right away | |||
| Crest factor | 3:1 | ||
| Full load efficiency | ≥90% | ||
| Dynamic response | ± 5.0% (with load from 0% to 100%) | ||
| ≤5% in a cycle | |||
| Inverter output current limit | When the instantaneous current is 2~3 times the nominal peak current (1,414 *Rated power/(3* 220)) the inverter enters current throttling | ||
| DC component | ≤200mV property | ||
| Noise | <55dB (1m) | ||
| Display | LED + LCD | ||
| Safety | Compliant IEC62040-1, GB4943 | ||
| Emi | Conduction: IEC 62040-2 | ||
| Radiation: IEC 62040-2 | |||
| Harmonics: IEC 62040-2 | |||
| Ems | IEC 62040-2 | ||
| Isolation resistance | > 2MΩ (500Vdc) | ||
| Voltage Isolation | 2820Vdc, <3.5mA, 1min | ||
| Voltage changes | Compliant IEC60664-1 1.2/50uS+8/20uS 6KV/3KA | ||
| Degree of protection | IP20 | ||
| Model | MSN06-FC3241 | MSN10-FC3241 | |
| RATED POWER | 6000VA / 5400W | 10000VA / 9000W | |
| Input | Input | Single-phase | |
| Power factor | ≥ 0.8 (THDV input ≤1%) | ||
| Rated voltage | 220VAC / 230VAC / 240VAC | ||
| Rated frequency | 50Hz/60Hz Automatic Selection | ||
| Voltage range | 120~276Vac ～ | ||
| Frequency range | 45~65Hz | ||
| Thdi | ≤3% (100% linear load, THDV input ≤1%) | ||
| ≤5% (100% nonlinear load, THDV input ≤1%) | |||
| Output | Output type | Single phase | |
| Voltage adjustment | ±1.0% | ||
| Power factor | 0.9 | ||
| Voltage Distortion (THD) | Less than 2% with 100% linear load | ||
| Less than 5% with 100% nonlinear load | |||
| Frequency | 50Hz or 60Hz | ||
| Nominal voltage | 220V/230V/ 240Vac selectable or others on request
110/115/120Vac Selectable (synchronized outputs) |
||
| Frequency adjustment | ±0.1% (single unit) | ||
| ±0.25% (units in parallel) | |||
| Frequency | 50Hz or 60Hz depending on the required setting | ||
| Frequency synchronization | 1Hz/s (single unit) | ||
| 0.5Hz/s (parallel drive) | |||
| Acceptable overload | 105 % ~ 110 %, for max 1h | ||
| 110% ~ 125%, for max 10 min | |||
| 125% ~ 150%, for max 1 min | |||
| >150% switch off right away | |||
| Crest factor | 3:1 | ||
| Full load efficiency | ≥90% | ||
| Dynamic response | ± 5.0% (with load from 0% to 100%) | ||
| ≤5% in a cycle | |||
| Inverter output current limit | When the instantaneous current is 2~3 times the nominal peak current (1,414 *Rated power/(3* 220)) the inverter enters current throttling | ||
| DC component | ≤200mV property | ||
| Noise | <55dB (1m) | ||
| Display | LED + LCD | ||
| Safety | Compliant IEC62040-1, GB4943 | ||
| Emi | Conduction: IEC 62040-2 | ||
| Radiation: IEC 62040-2 | |||
| Harmonics: IEC 62040-2 | |||
| Ems | IEC 62040-2 | ||
| Isolation resistance | > 2MΩ (500Vdc) | ||
| Voltage Isolation | 2820Vdc, <3.5mA, 1min | ||
| Voltage changes | Compliant IEC60664-1 1.2/50uS+8/20uS 6KV/3KA | ||
| Degree of protection | IP20 | ||
Working environment
| Temperature | 0°C ~ 40°C |
| Relative humidity | 0 ~95% non-condensing |
| Altitude | <1500m; if >1500m derating required |
| Storage temperature | -25°C~55°C (excluding batteries) |
| Handling | On wheels |
Mechanical specifications
| Model | MSN06FC | MSN10FC | MSN06FC-3241 | MSN10FC-3241 |
| Height (mm) | 616
250 |
|||
| Width (mm) | 250 | |||
| Depth (mm) | 502 | |||
| Weight (Kg) | 30 | 32 | 56 | 60 |
| Color | Black | |||
EMC Standard/ Safety Standards
Our product has been built in accordance with the EMC standards below and has passed the CE certification:
| SAFETY STANDARDS/EMC |
| IEC/EN 62040-1 |
| IEC/EN 62040-2 |
| IEC/EN 62040-3 |
| IEC/EN 60950-1 |
| EN50171 |
