PRODUCT SPECIFICATIONS
WHAT IS BATTERY CHARGER UNIT – RECTIFIER?

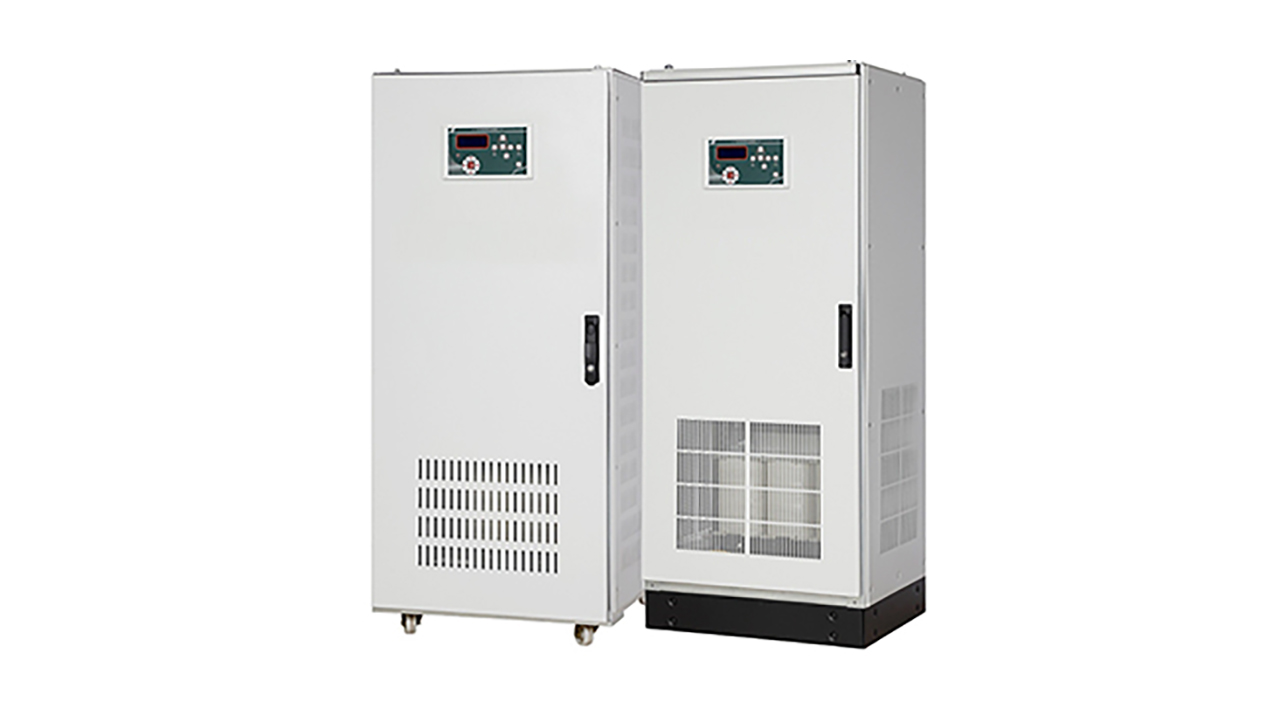

EBD series Battery charger units have Automatic constant current and constant voltage features, isolation transformer and thyristor controlled industrial type rectifier units.
Managed by microprocessor controlled electronic circuits All parameters are adjustable for optimum charging and highest performance in EBD battery charging units to battery type and technical parameters.
System has protection system against over current, over voltage, over temperature, short circuit and peak current.
In Flat serial Battery Chargers & Rectifiers an inductor capacitor filter exists at the output. Input and output terminals are in cabinet and protected by suitable fuses.
Battery deep discharge protection unit , DC / DC voltage regulator unit for loads and dry contacts for automation systems are optional features.
The MOD-BUS RTU unit is also an optional feature with the RS485 interface allowing remote monitoring and management of the system.
WHAT ARE THE APPLICATION FIELDS?
EBD Serial Battery Chargers are designed and produced to be used in communication and alarm circuit of ships and yachts, safety systems in business place and residences, petrochemical industry and power electronics applications, training and test laboratories of schools, test laboratories of factories or feeding system of electronic devices. They are also used for DC feeding system and
charge of lead acid, nickel cadmium and dry type batteries. In high discharge currents it provides opportunity to turn on and turn off in short periods. It provides appropriate solutions in emergency illuminating, alarm communication circuits, galvanization and in emergency aluminium eloxal facilities, petro chemistry industry and power electronic practices.
STRUCTURAL SPECIFICATIONS
■ Production with single phase and three phase input supply
■ Production between range of 12-3000 V DC and 1 A-30.000 A
■ Automatic float boost facility
■ High productivity through Thyristor-Diode, Transistor technology and
microprocessor controlled boards
■ Low waviness (ripple 1%), high current and voltage stability

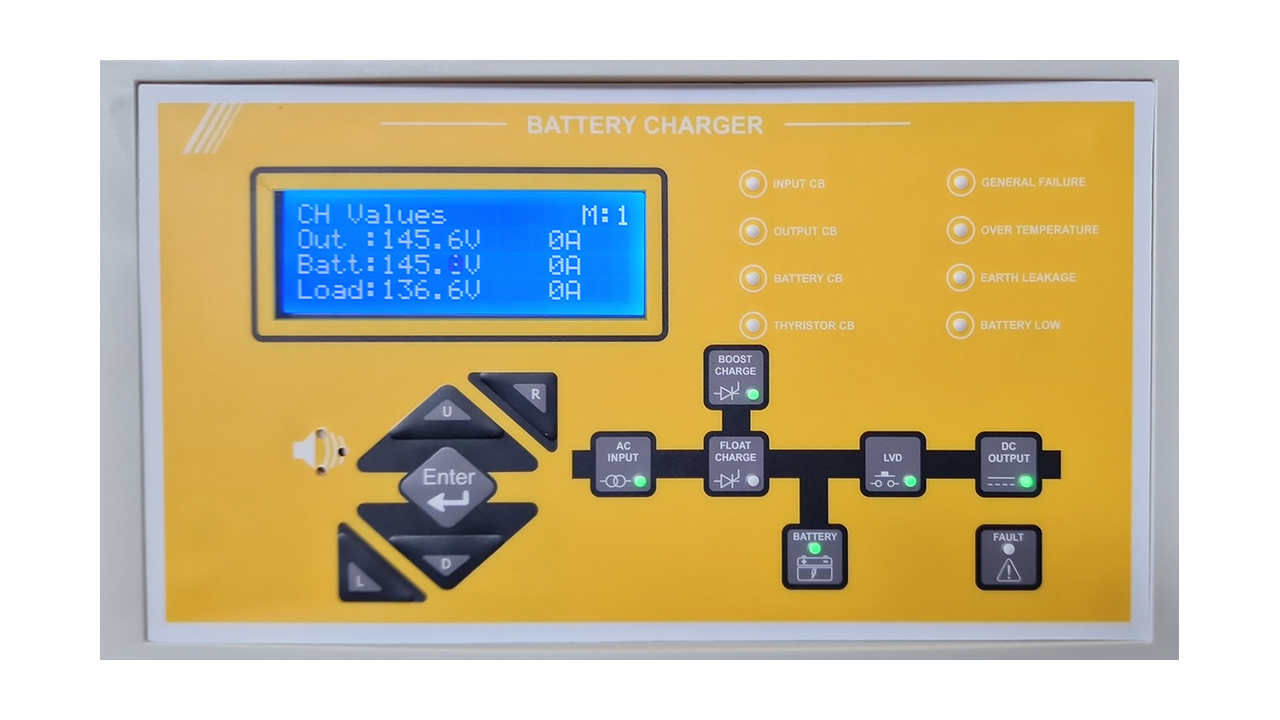

■ User friendly, easy and comprehensible LCD display and mimic
diagram
■ Audial and lightened warning for all faults and dry contact outputs
■ External battery connection
■ Battery discharge protection with Low Voltage Disconnect unit (LVD)
■ Silicon Dropper unit for voltage regulation of DC supply
■ Minimal size, static structure, easy commissioning

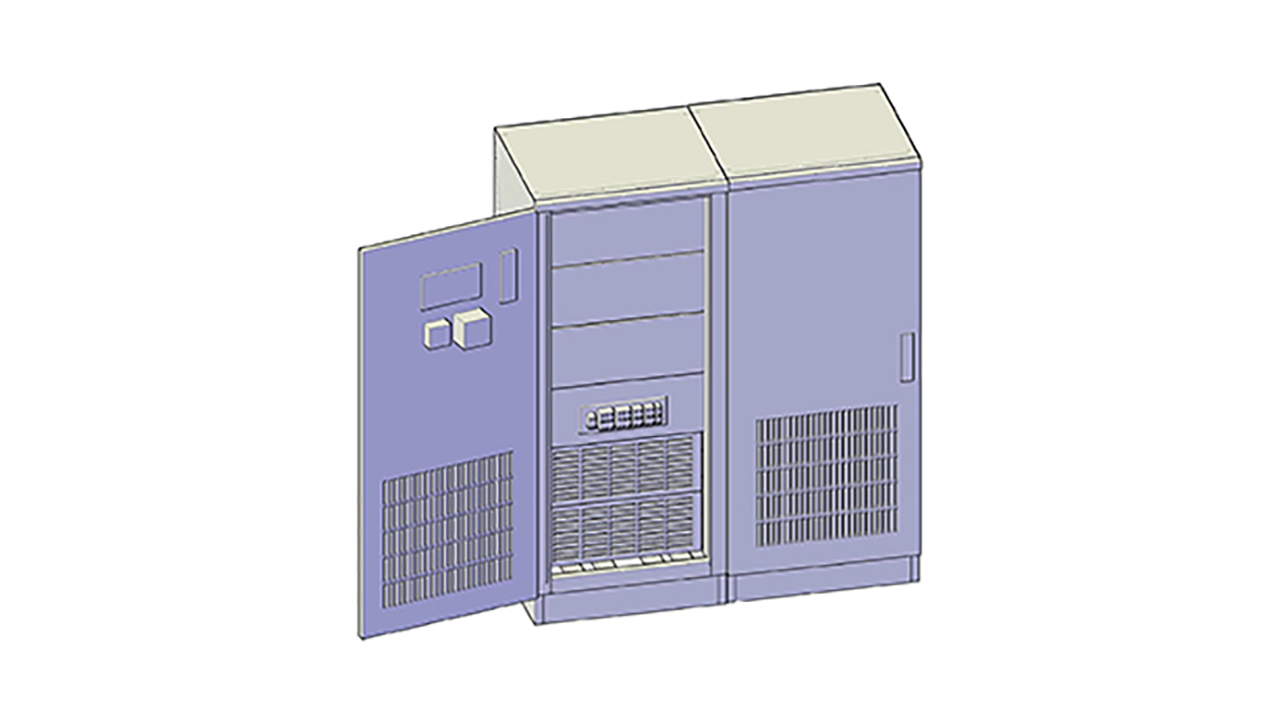

■ Cabinet design suitable for industrial environment
■ Special, durable cabinet, powder coated with standard color named
RAL-7035, IP21 (IP54 Optional)
■ Manuel adjusting property for output voltage and output current from
LCD
■ Automatic battery activation in case of power cuts
(Optional)
■ Possibility of regulation of charge-voltage-current through battery
temperature feedback (Optional)
■ Production with ISO 9001:2008 Quality Management System
