VARF-1NM12R10 – SINGLE PHASE STABILIZED VARIABLE TRANSFORMERS from 4A to 60A 0:250V with remote control

SINGLE PHASE VARIABLE AUTOTRANSFORMER VARf-1NMR10 RANGE

OUTPUT STABILIZED REGULATION BY ANALOGIC SIGNAL 0:10VDC OR MODBUS-RTU

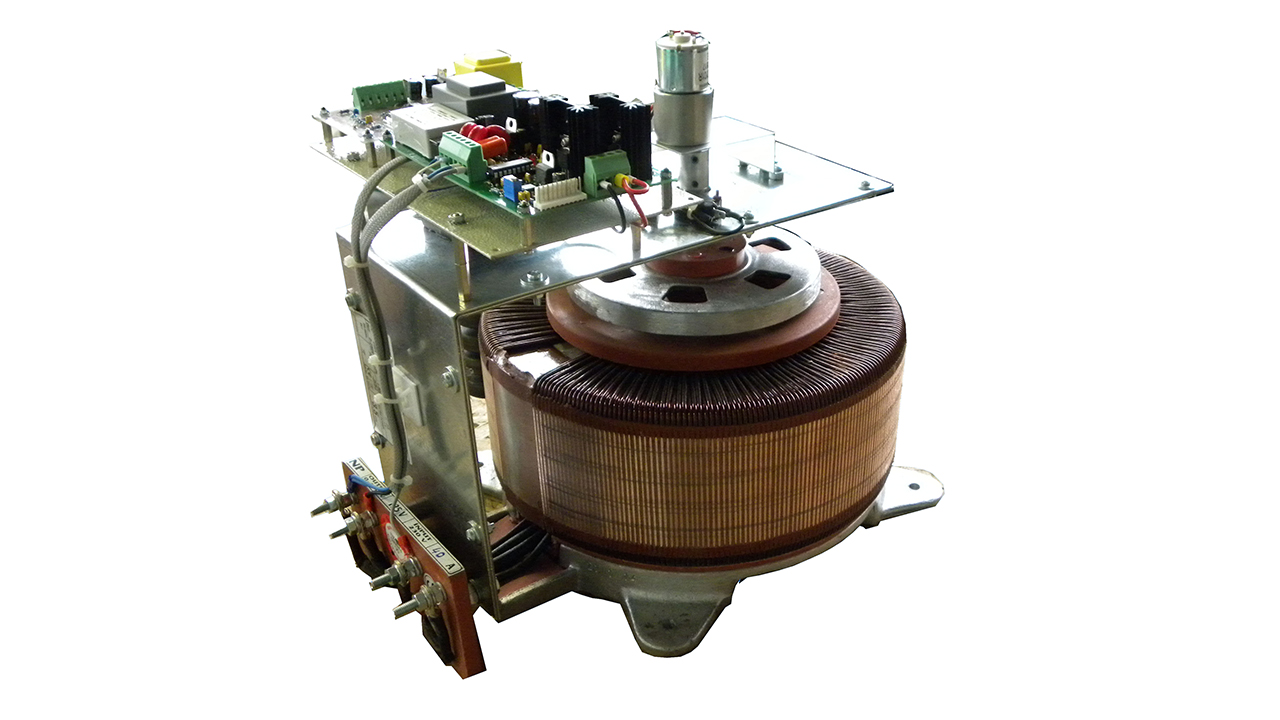

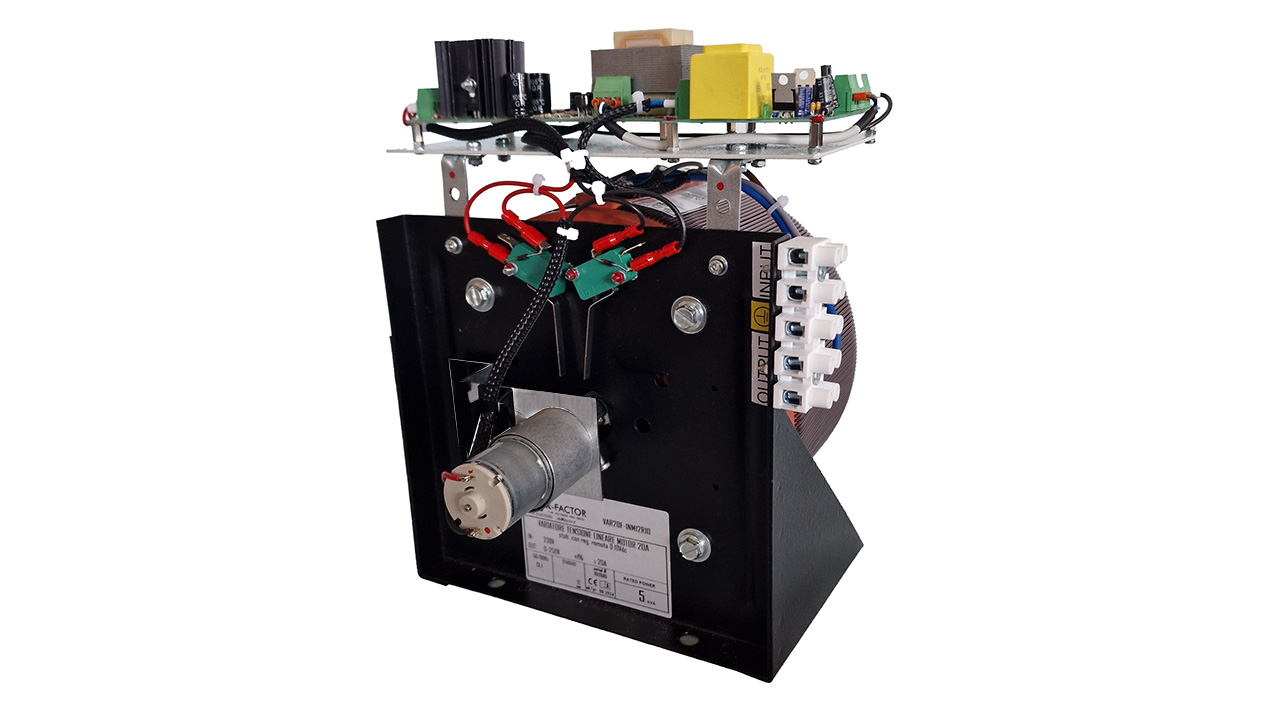

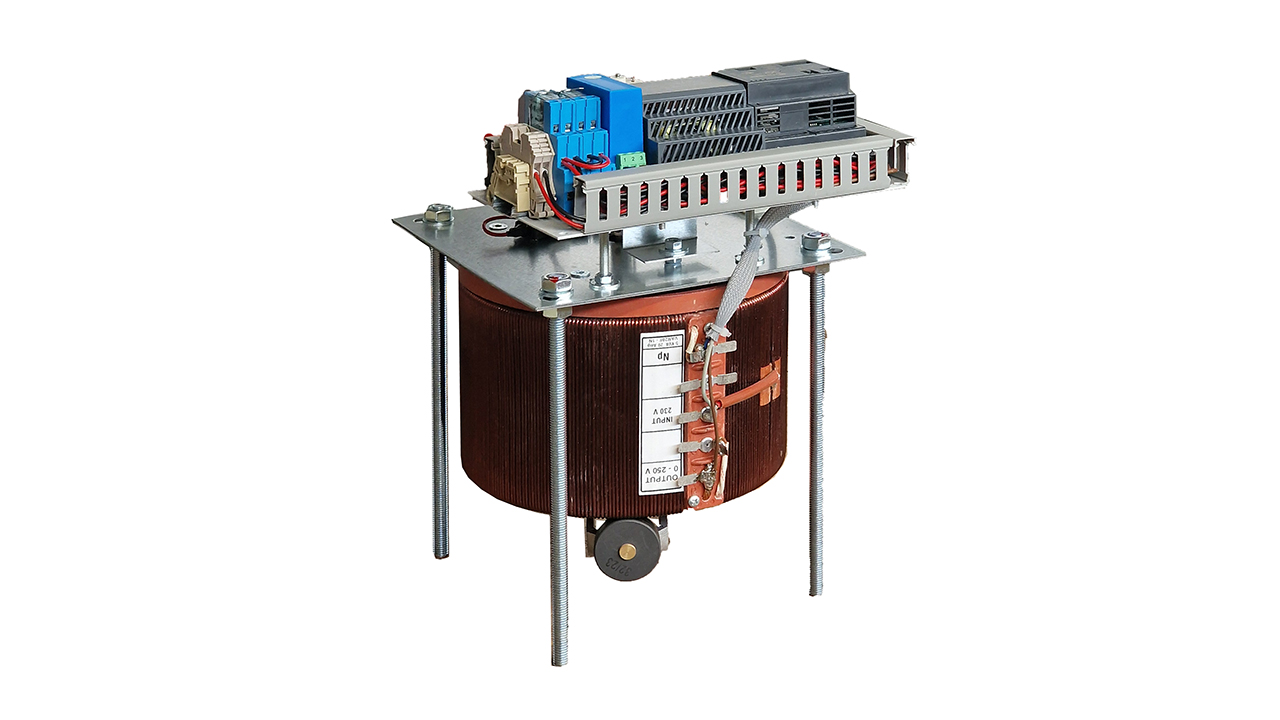

K-factor’s VAR-1NR10 series single-phase voltage variators are made up of high-quality variable toroidal transformers, whose regulation occurs through a DC motor controlled by a microprocessor electronic system.

A carbon brush rotates along the surface contact of the toroid with a rotation that allows a gradual and continuous variation of the output voltage from AC-2-3V to 250Vac. The maximum effective no-load voltage decreases by a few volts due to the mechanical and electrical block imposed by the limit switch.

The system also powers the engine which, therefore, does not require auxiliary power.

The stabilized output voltage is regulated via a 0:10Vdc input or a potentiometer (not supplied), and by modbus-RTU.

• Input voltage: 230Vac
• Adjustable output voltage: 5Vac : 240Vac
• Motorized and managed by a software control
• Output voltage regulation with potentiometer or analogue 0:10Vdc
• Output voltage regulation by MODBUS-RTU on UDB-C and RJ45
• Static stabilized output voltage: ±1.5% f.s.
• Open execution, to be incorporated
• IP00 protection degree
• Insulation class F (Ta max 45°C)
• Single winding with intermediate input socket OPTIONAL on request
• Impregnated in resin and tropicalized

NOTE: SOME ACCESSORIES ARE USED AS AVAILABLE: OVERALL DIMENSIONS MAY VARY.
