TMI64 – SINGLE PHASE ISOLATION TRANSFORMERS 3 TO 25KVA – supply of medical rooms

Request information
Nome e Cognome (richiesto)

Azienda (richiesto)

La tua email (richiesto)

Telefono (consigliato)

La tua richiesta

Dichiaro di avere letto l'informativa sulla privacy e di autorizzare il trattamento dei dati personali. I dati saranno utilizzati esclusivamente per le finalità indicate, mantenuti riservati e in nessun caso saranno comunicati a terzi.

Download

Part no	Code	Losses W	s.c.v. %	Dimensions mm.						dwg	Weight kg	box
Part no	Code	Losses W	s.c.v. %	a	b	c	d	e	f	dwg	Weight kg	box
2000	TMI64219636	90	5.0	180	150	184	150	120	8	*	19	MBT02
3150	TMI64249636	130	3.5	200	200	245	160	150	8	*	26	MBT02
4000	TMI64267636	145	2.9	240	200	360	200	125	8	A	30	SAM03
5000	TMI64287636	180	2.7	240	200	360	200	125	8	A	32	SAM03
6300	TMI64307636	200	2.7	240	200	360	200	125	8	A	35	SAM03
8000	TMI64347636	210	2.7	240	300	360	200	205	8	A	43	SAM03
10000	TMI64387636	280	2.5	240	300	360	200	205	8	A	48	SAM03
15000	TMI64427636	400	2.5	320	300	440	260	210	8	B	68	SAM04
20000	TMI64467636	600	2.4	330	320	460	260	230	8	B	86	SAM04

CategorySINGLE PHASE TRANSFORMERS, SINGLE PHASE ISOLATION AND SAFETY TRANSFORMERS

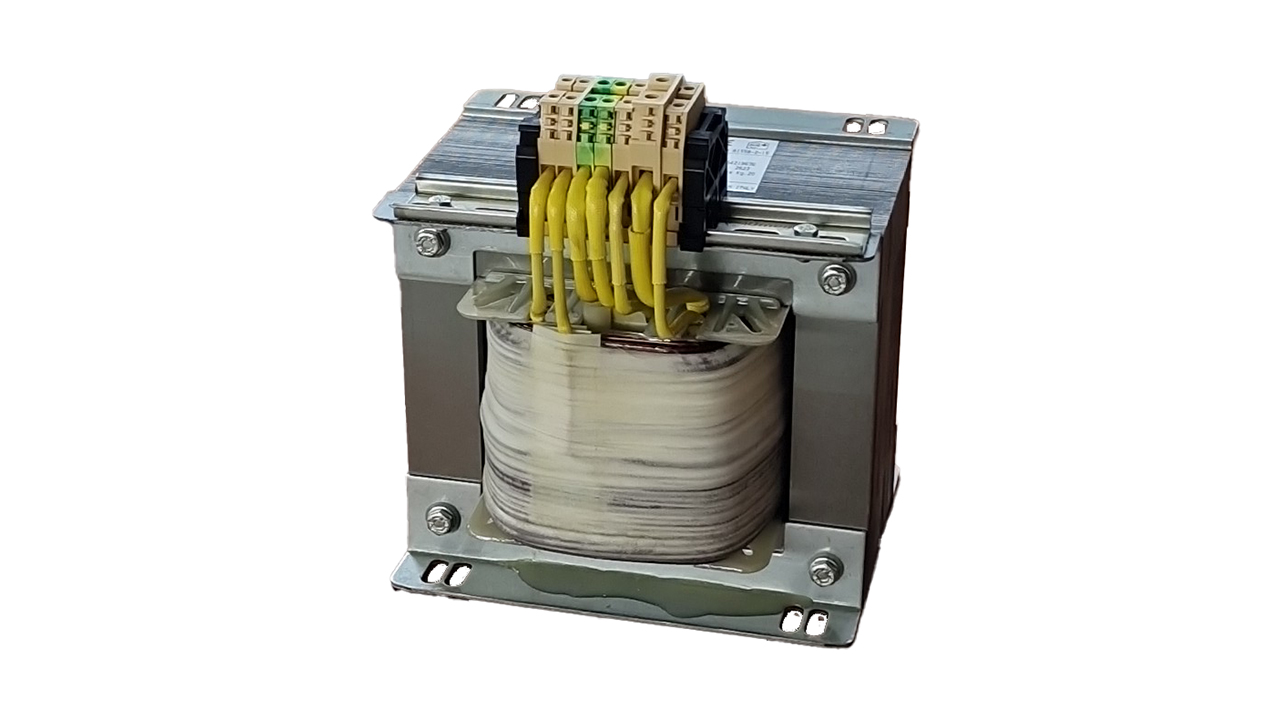

SINGLE PHASE ISOLATION TRANSFORMERS 3 TO 25KVA – supply of medical rooms

Input voltage: 230Vac
Output voltage: 230V + C.T.
Open type
Protection IP00
Frequency: 50/60Hz
Isolation class H (At max 45°C)
Separate copper windings cl. H
Resing impregnated and tropicalised
Double earthed copper screen between primary and secondary
Central point of sec. winding available to be earthed
Short circuit voltage < 3%
Inrush current < 12 In
Connections on terminal blocks up to 10kVA (or to 63A)
Connections on brass bolts up to 12,5kVA (or from 64A)
Applied standards: EN61558-2-15
Optional: mounted in metal enclosure RAL7032, IP23

schema trasformatore isolamento sicurezza schermo


A	B

power	part no.	perdite	imp.V	dimensions mm.						DWG	weight	box
VA	part no.	W	%	A	B	C	D	E	F	DWG	kg.	code
3150	TMI64249	130	3.0	240	230	320	200	125	12	A	34.0	SAM02
4000	TMI64267	145	2.9	240	240	320	200	135	12	A	38.0	SAM02
5000	TMI64287	180	2.7	240	250	320	200	145	12	A	44.0	SAM02
6300	TMI64307	200	2.7	280	230	400	220	145	12	A	49.0	SAM03
8000	TMI64347	210	2.7	280	240	400	220	155	12	A	60.0	SAM03
10000	TMI64387	280	2.5	280	250	400	220	165	12	A	65.0	SAM03
15000	TMI64427	400	2.5	320	260	450	260	185	12	B	92.0	SAM04
20000	TMI64467	600	2.4	320	280	450	260	205	12	B	116.0	SAM04
25000	TMI64507	700	2.1	320	280	450	260	205	12	B	131.0	SAM04
