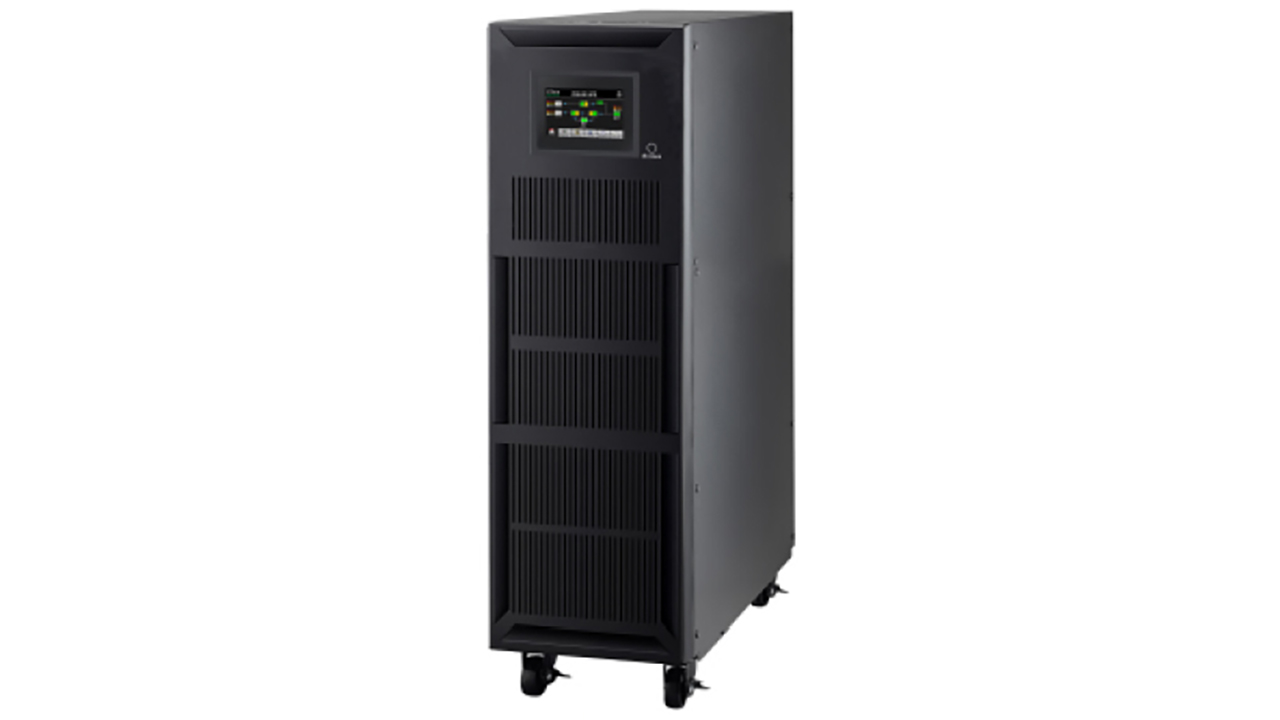

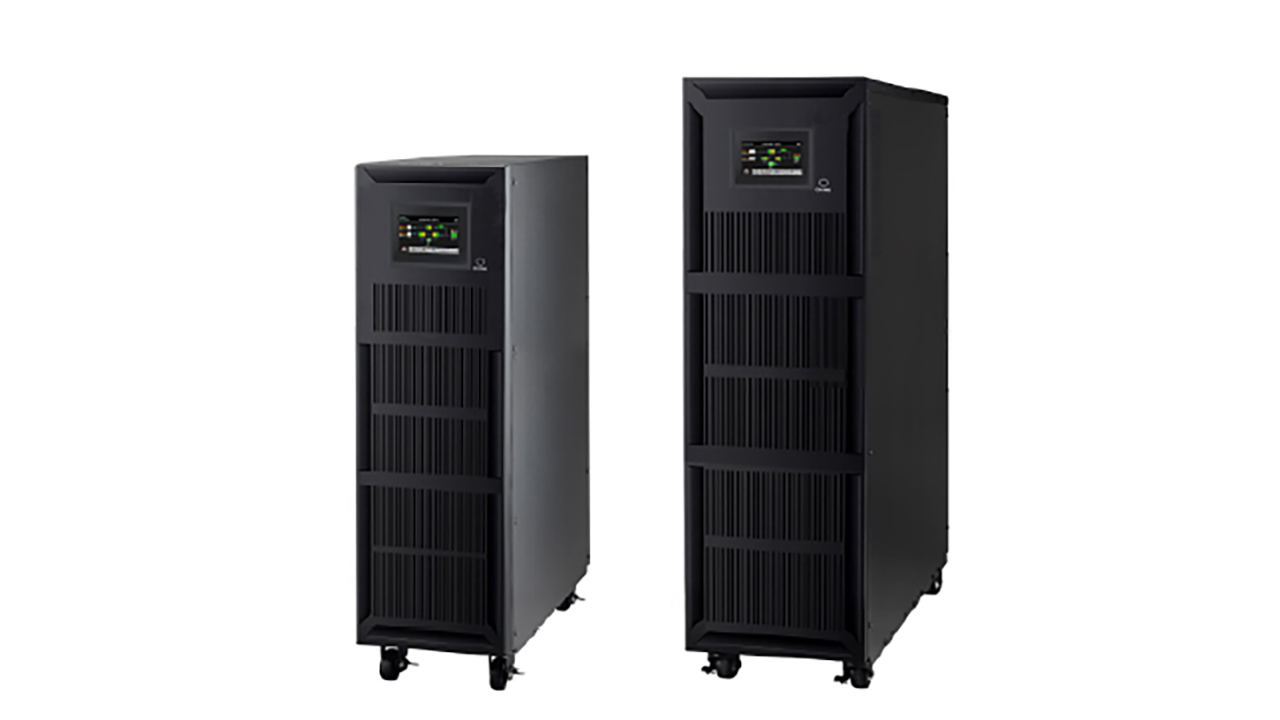

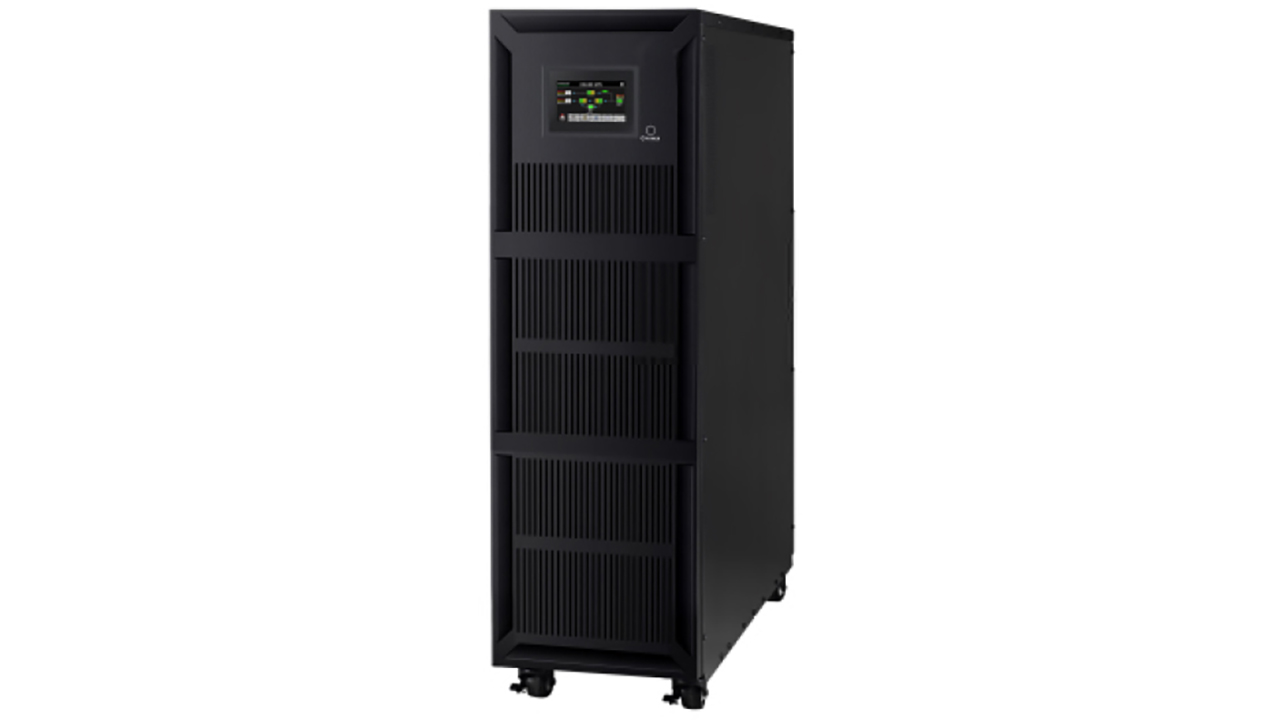

EG133FC – THREE-PHASE and THREE-PHASE-MONO-PHASE FREQUENCY CONVERTERS FROM 10KW TO 80KW
EGL 33 is available in the ratings 8-16-24KW, with on-line double conversion managed by a digital control; for its versatility it is suitable to supply any electrical and electronic system with a frequency of 50 / 60Hz
- DOUBLE CONVERSION
A real DOUBLE CONVERSION system which will provide a perfect current, for a high quality voltage supply of your sensitive devices
- OUTPUT POWER FACTOR φ 0.8
the best Output Power Factor 0.8. They offer high performance and efficiency for critical applications
- WIDE INPUT RANGE (200 V -500 V)
EGL33 is able to provide stable and clean power to the connected equipment even in very critical and unstable environments.
- FREQUENCY CONVERTER FUNCTION 50/60 Hz
Lock output frequency at 50Hz or 60Hz regardless of input frequency and eliminates the By-Pass
- FUNCTION (EPO) Emergency Power Off
This function is used when the drive is switched off by the personnel in case of fire and other emergency situation.
- OPERATION OF CONTEMPORARY SNMP + USB + RS-232
This feature allows you to use communication to all USB ports, RS-232 and SNMP simultaneously.
- POWER FACTOR CORRECTION ON ALL STAGES
PFC improves the quality of the current consumption and increases the energy efficiency, with the consequent economic savings
- COMMUNICATION
Software for all operating systems and network environments. supervision and shutdown platform
GUARANTEE 24 MONTHS
| MODEL | EGL3310KFC | EGL3320KFC | EGL3330KFC |
| POWER | 10kVA/8kW | 20kVA/16kW | 30kVA/24kW |
| INPUT | |||
| Rated voltage | 400Vac +N + PE three phase | ||
| Frequency | from 46 to 54Hz @ 50Hz / 56-64 Hz @ 60Hz | ||
| No. of phases | Three phase + N + earth | ||
| Power Factor | > 0.99 @ 100% load | ||
| THDi | <5% @ 100% load | ||
| OUTPUT | |||
| Rated voltage | 3 x 360-380-400-415Vac three phase + N + earth | ||
| Output accuracy | ± 1% | ||
| Inverter Frequency | 50 ± 0.1 Hz or 60Hz ± 0.1Hz | ||
| Crest Factor | 3 : 1 | ||
| Harmonic Distortion | < 2% THD (linear load) < 6% THD (non linear load) | ||
| Wave form | Pure Sine Wave | ||
| Efficiency | 89% | ||
| PROTECTIONS | |||

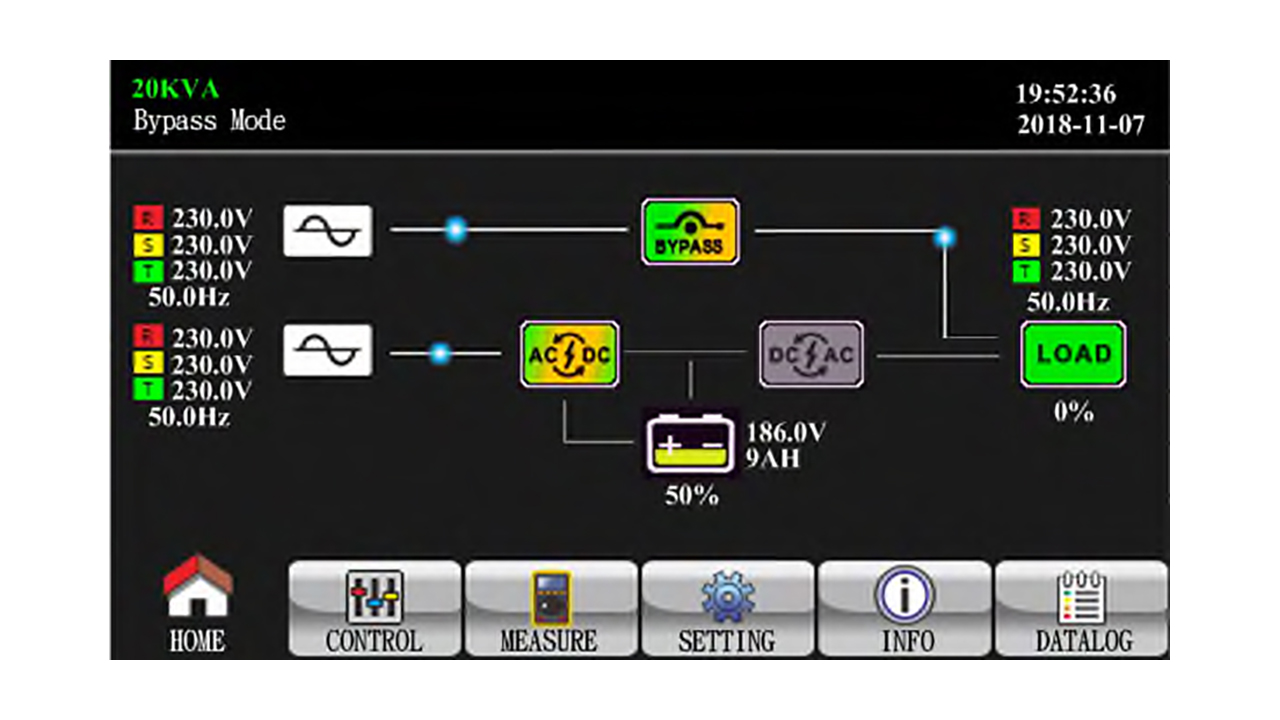

| Display signals | Status, in/out voltage / frequency | ||
| Overload | 2 beeps per second | ||
| Fault | Continuous beep | ||
| OTHER DATA | |||
| Humidity | 0-90% without condensation (0°C – 40°C) | ||
| Noise Level | <58 dBA at 1 mt. | <60 dBA at 1 mt. | |
| Dimensions mm. | 592x250x826 | 815x250x826 | |
| Net weight kg. | 38 | 40 | 64 |
| RS-232 / USB interface | Software compatible with Windows, Novell, Linux, FreeBSD | ||
| SNMP (optional) | SNMP Power Manager and web browser | ||
MAX ACCEPTABLE LOAD CURRENT IS LIMITED TO RATED CURRENT.
