RAV – THREE PHASE REACTANCES (CHOKES) FOR MOTOR STARTING from 5Hp to 400Hp 4 starts/h 20″

Richiedi informazioni

Nome e Cognome (richiesto) *
Azienda (richiesto) *
La tua email (richiesto) *
Telefono (consigliato)
La tua richiesta
Privacy Policy *
Dichiaro di avere letto l'informativa sulla privacy e di autorizzare il trattamento dei dati personali. I dati saranno utilizzati esclusivamente per le finalità indicate, mantenuti riservati e in nessun caso saranno comunicati a terzi.

Download

Power	Power	Code	Dimensions mm			Weight
kW	HP	Code	A	B	C	kg
3.68	5	RAV004	180	90	160	6.6
5.52	7.50	RAV006	180	90	160	7.0
7.36	10	RAV007	180	100	160	8.2
11.04	15	RAV011	180	110	160	10.3
14.72	20	RAV015	180	120	160	12.6
22.08	30	RAV022	240	130	210	21.7
29.44	40	RAV030	240	155	210	24.9
36.80	50	RAV036	300	134	260	27.0
44.16	60	RAV045	300	144	260	35.0
55.20	75	RAV055	300	144	260	36.0
73.60	100	RAV074	300	154	260	39.0
92.00	125	RAV092	300	164	260	43.0
110.40	150	RAV110	360	170	310	66.0
128.80	175	RAV129	360	170	310	76.0
147.20	200	RAV147	360	180	310	84.0
184.00	250	RAV186	420	190	360	92.0
220.80	300	RAV220	420	215	360	122.0
294.40	400	RAV300	480	215	410	173.0

CategoryAUTOTRANSFORMERS

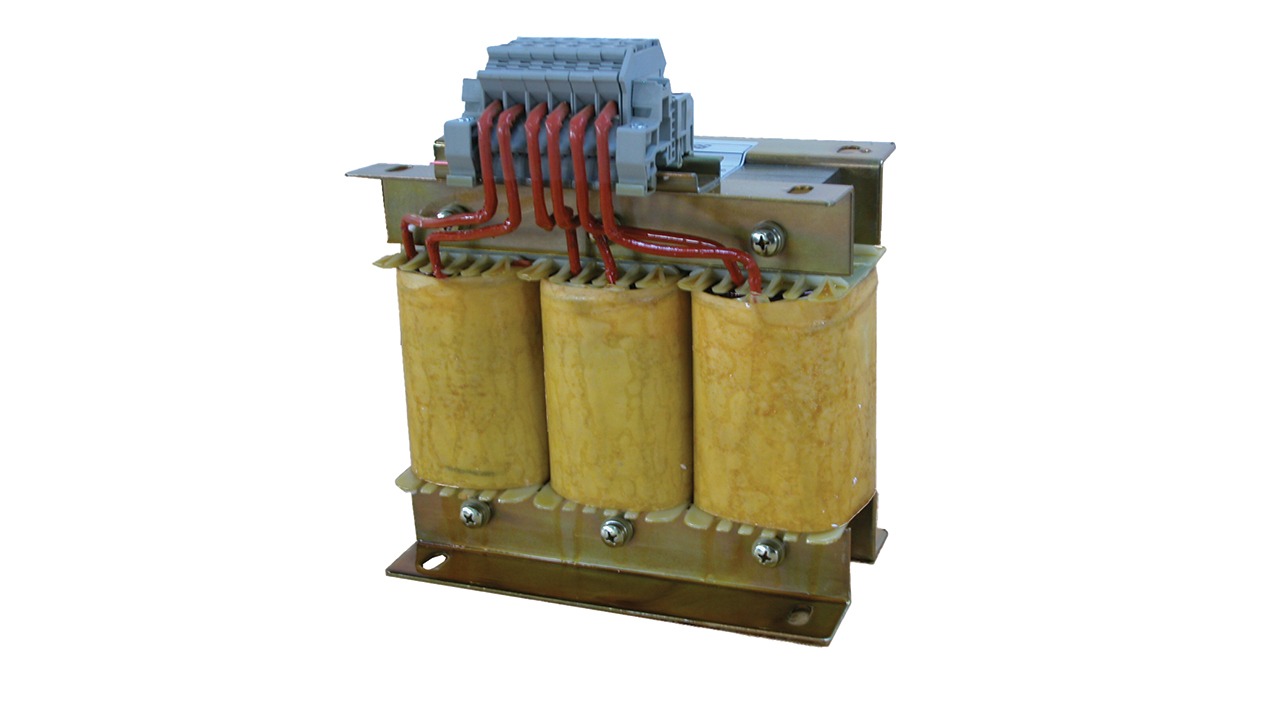

THREE PHASE REACTANCES (CHOKES) FOR MOTOR STARTING from 5Hp to 400Hp 4 starts/h 20″

Rated voltage 400V
Voltage regulation 30% at full load
Frequency 50/60Hz
Protection IP00
Isolation class H (Ta max 45°C)
Copper windings cl. H
Resin impregnated and tropicalized
Connections on DIN rail terminal blocks up to 50Hp
Connections on isolated brass bolts from 75Hp
Lifting holes/lugs from 150Hp
Applid standards: EN61558-2-13
105°C thermostat in central winding on requestfor 3 starts/h 5″ version see RAS range here

schema trasformatore isolamento sicurezza schermo

consecutive starts	starts/h	max starting time
1	4	20″

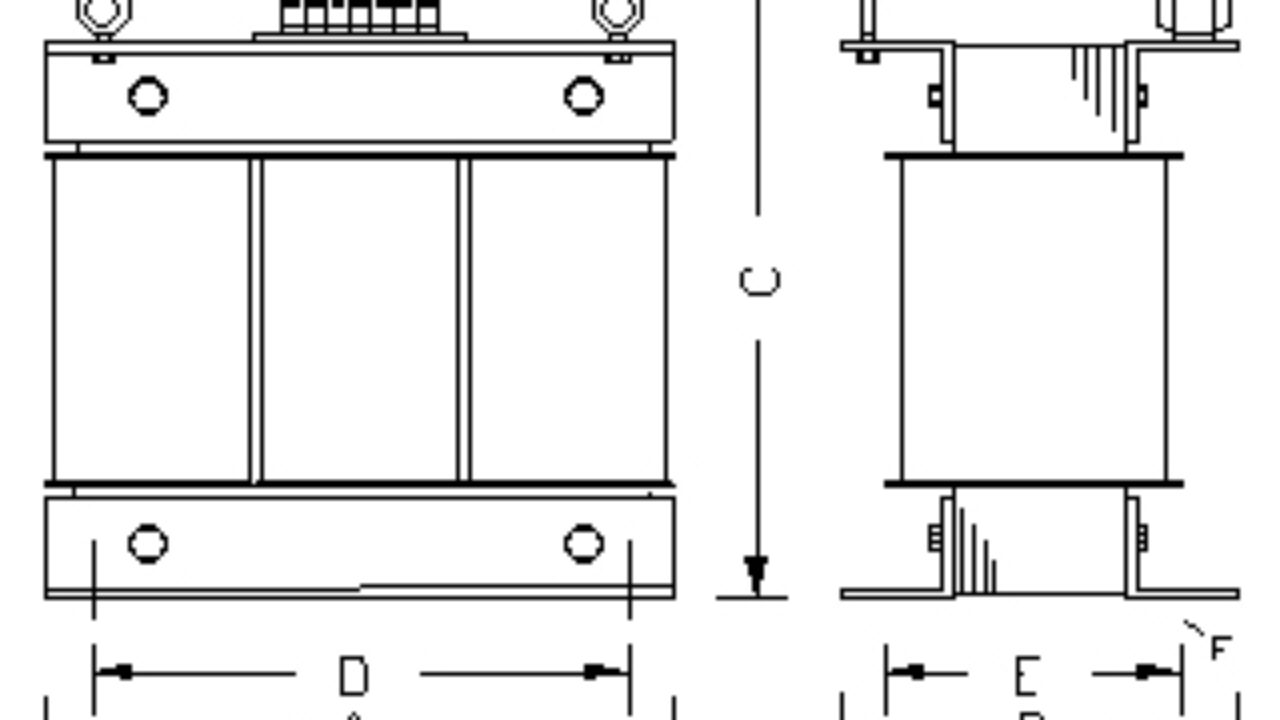

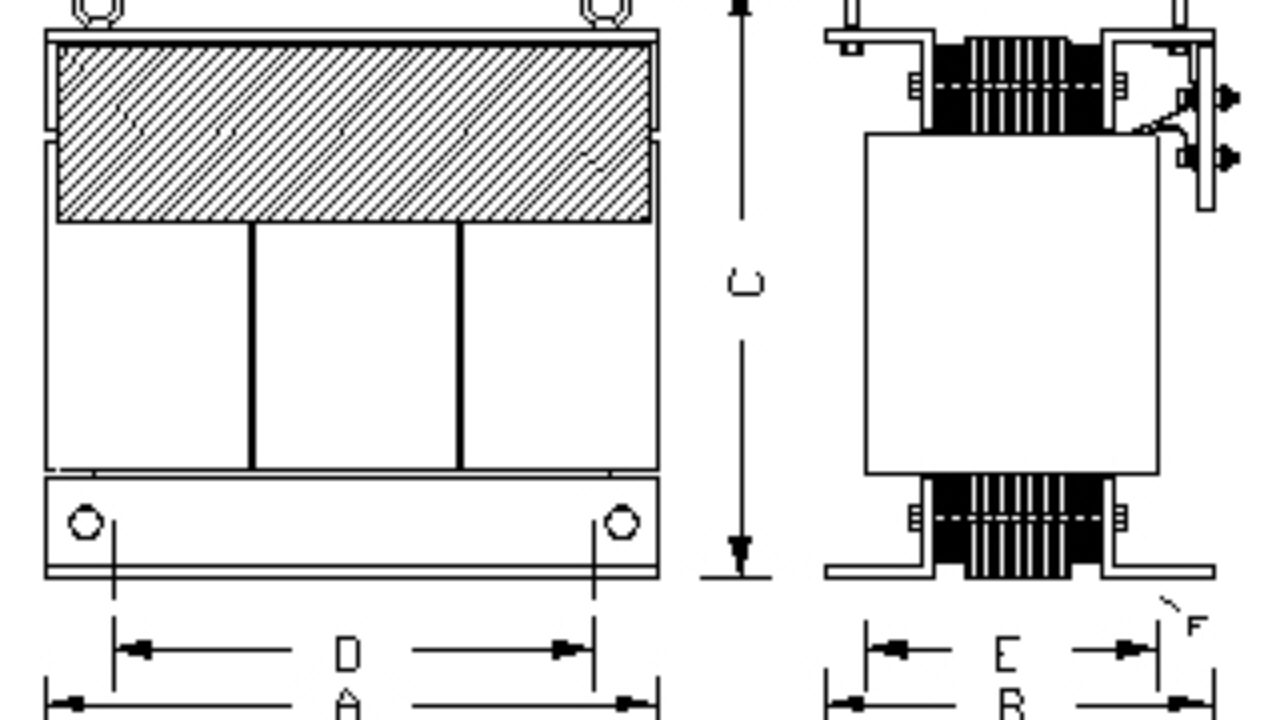

A	B

power	power	part no	dimensions mm.			DWG	weight	box
KW	Hp	part no	A	B	C	DWG	kg.	code
3.68	5	RAV004	180	90	160	A	6.6	SAM01
5.52	7.50	RAV006	180	90	160	A	7.0	SAM01
7.36	10	RAV007	180	100	160	A	8.2	SAM01
11.04	15	RAV011	180	110	160	A	10.3	SAM01
14.72	20	RAV015	180	120	160	A	12.6	SAM01
22.08	30	RAV022	240	130	210	A	21.7	SAM01
29.44	40	RAV030	240	155	210	A	24.9	SAM01
36.80	50	RAV036	300	134	260	B	26.8	SAM02
44.16	60	RAV045	300	144	260	B	35.0	SAM02
55.20	75	RAV055	300	144	260	B	36.0	SAM02
73.60	100	RAV074	300	154	260	B	39.0	SAM02
92.00	125	RAV092	300	164	260	B	43.5	SAM02
110.40	150	RAV110	360	170	310	B	66.0	SAM03
128.80	175	RAV129	360	170	310	B	76.0	SAM03
147.20	200	RAV147	360	180	310	B	84.0	SAM03
186.00	250	RAV186	420	190	360	B	92.0	SAM04
220.8	300	RAV220	420	215	360	B	122.0	SAM04
300	400	RAV300	480	215	410	B	173.0	SAM05

RAV – THREE PHASE REACTANCES (CHOKES) FOR MOTOR STARTING from 5Hp to 400Hp 4 starts/h 20″

THREE PHASE REACTANCES (CHOKES) FOR MOTOR STARTING from 5Hp to 400Hp 4 starts/h 20″
