SB – REVERSIBLE AUTOTRANSFORMERS 110/220V single phase from 0.1kVA to 10kVA for household appliances
SB REVERSIBLE AUTOTRANSFORMERS 110/220V are one of the most popular items distributed by k-factor since 1980 in the Middle-East countries. The first introducing the new double use sockets (European and US) in red/black colors, and the polycarbonate covers on reversible autotransformers. Polycarbonate covers provide a better isolation from the transformers’ heating and they are totally rust-free.

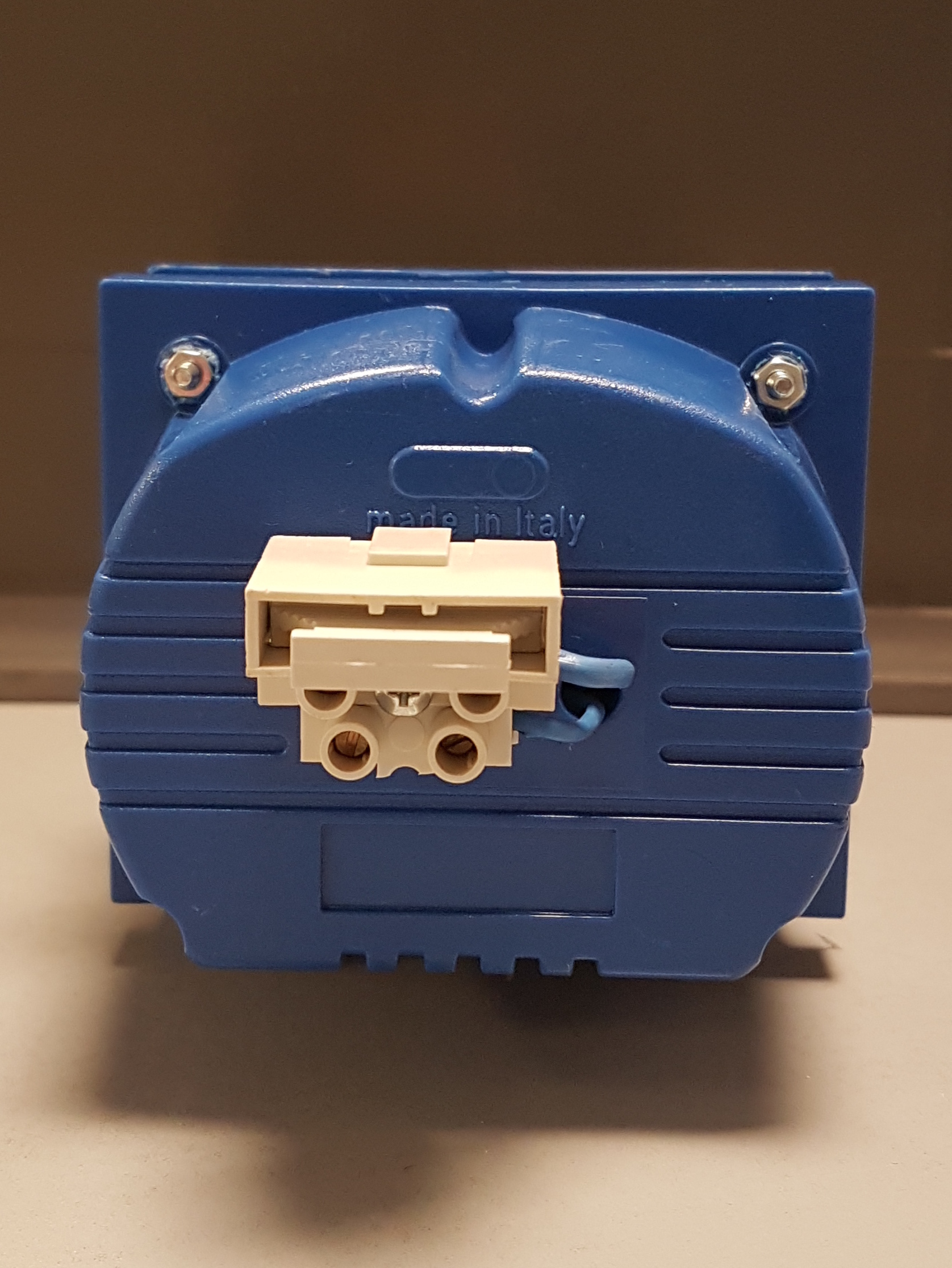

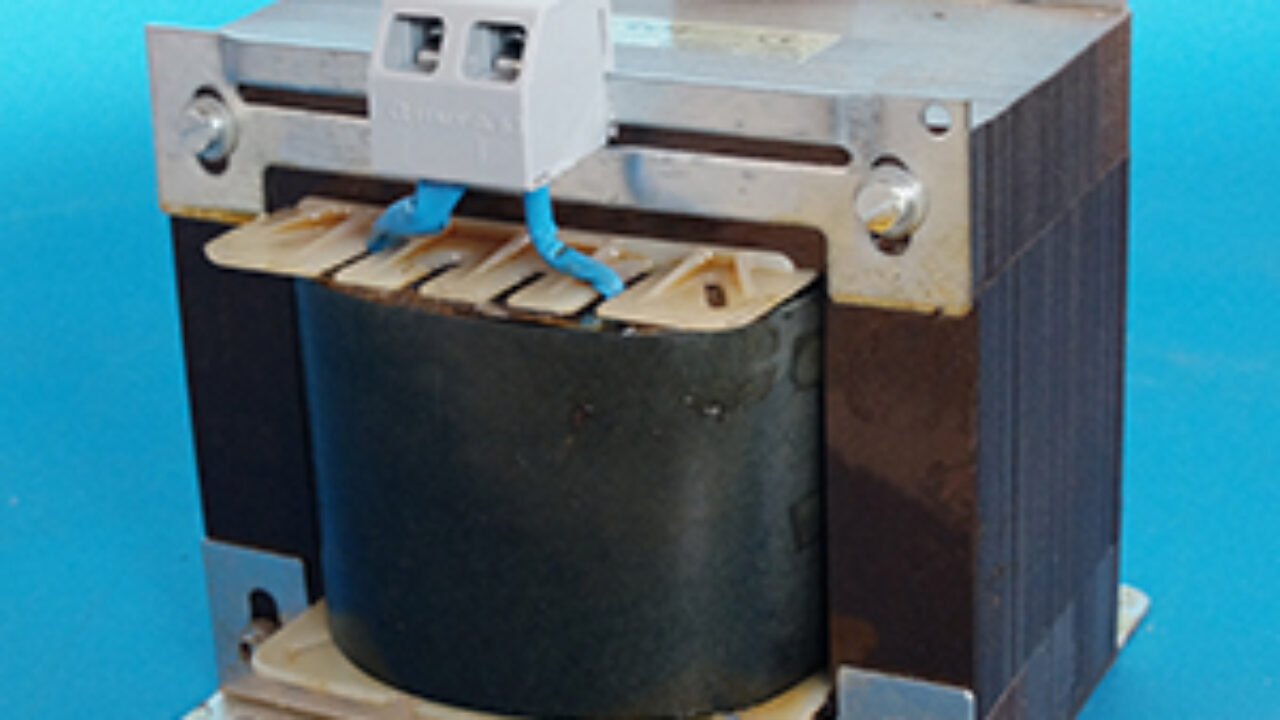

Due to higher rating, models from 3kVA feature input and output terminal blocks instead of sockets. From the 7500VA size, our reversible autotransformers are of the open type, but they can be equipped with a suitable weatherproof enclosure on request. A single carton box is provided for easy warehousing and safe handling.
Our Reversible autotrasformers are also available with the following input/output voltage: 110/220V, 127/220V, 110/240V, 127/240V

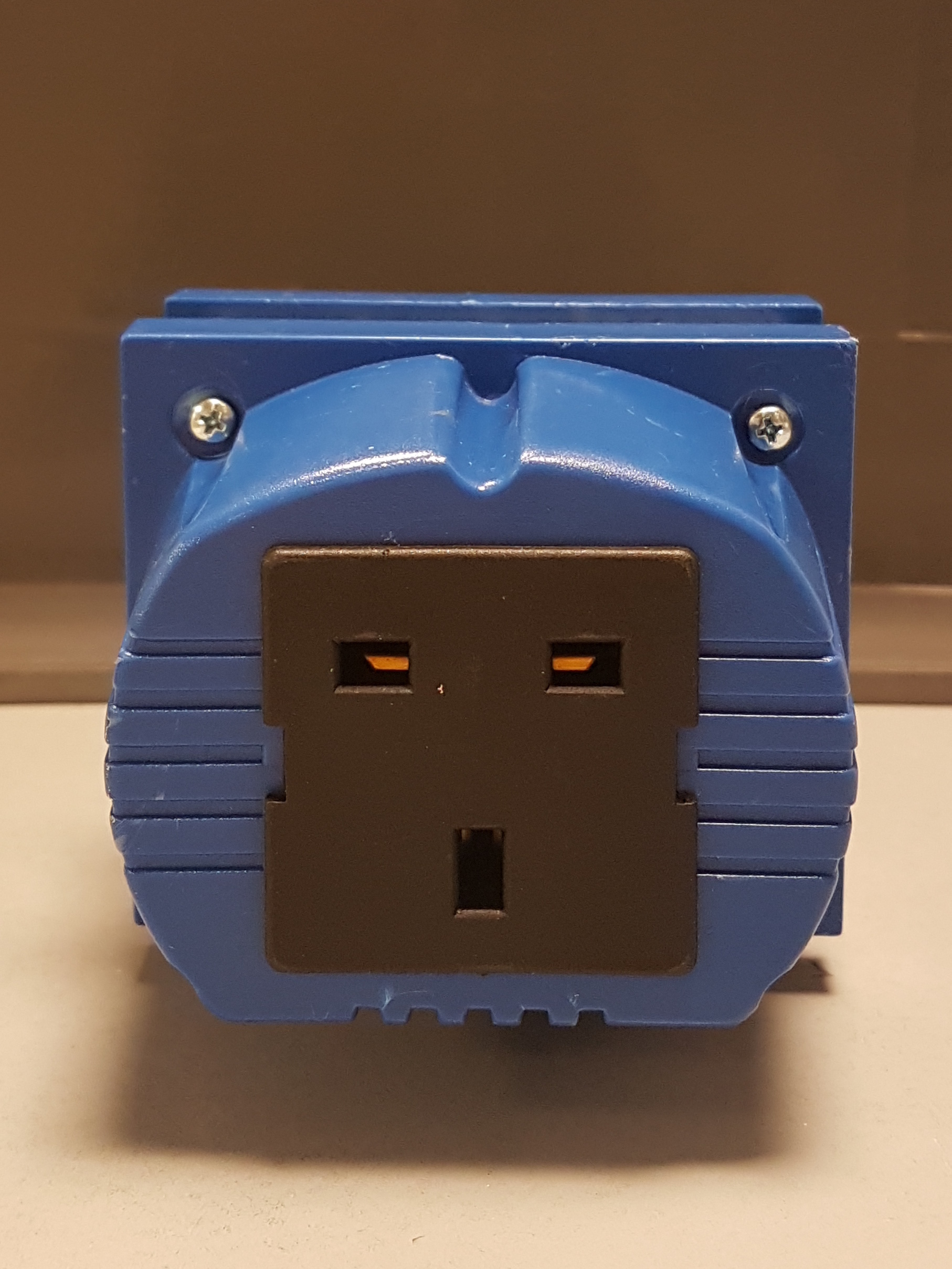

On request, a model of reversible autotransformer with UK standard sockets is also available
| Model | Power | W (mm.) | D (mm.) | H (mm.) | multiple carton | weight
(kg) |
| SBIT0100121 | 100VA | 78 | 92 | 105 | 10 pcs | 0.95 |
| SBIT0200121 | 200VA | 78 | 92 | 115 | 10 pcs | 1.50 |
| SBIT0300121 | 300VA | 78 | 92 | 125 | 10 pcs | 1.90 |
| SBIT0500121 | 500VA | 88 | 105 | 130 | 9 pcs | 2.70 |
| SBIT1000121 | 1000VA | 105 | 125 | 135 | 6 pcs | 3.80 |
| SBIT1500121 | 1500VA | 105 | 125 | 150 | 6 pcs | 5.10 |
| SBIT2000121 | 2000VA | 105 | 125 | 155 | 6 pcs | 5.70 |
| SBIT3000121 | 3000VA | 130 | 157 | 210 | 4 pcs | 8.00 |
| SBIT4000121 | 4000VA | 130 | 157 | 220 | 4 pcs | 9.30 |
| SBIT5000121 | 5000VA | 130 | 157 | 230 | 4 pcs | 10.80 |
| SBIT7500121 | 7500VA | 195 | 190 | 140 | 1 pcs | 19.00 |
| SBIT10000121 | 10000VA | 195 | 190 | 170 | 1 pcs | 25.00 |
Enclosure: SUITABLE FOR SB7500-SB10000 reversible autotransformers ONLY
| MBT02 | 7.5-10KVA | 350 | 280 | 280 |
1 unit |
3.00 |
