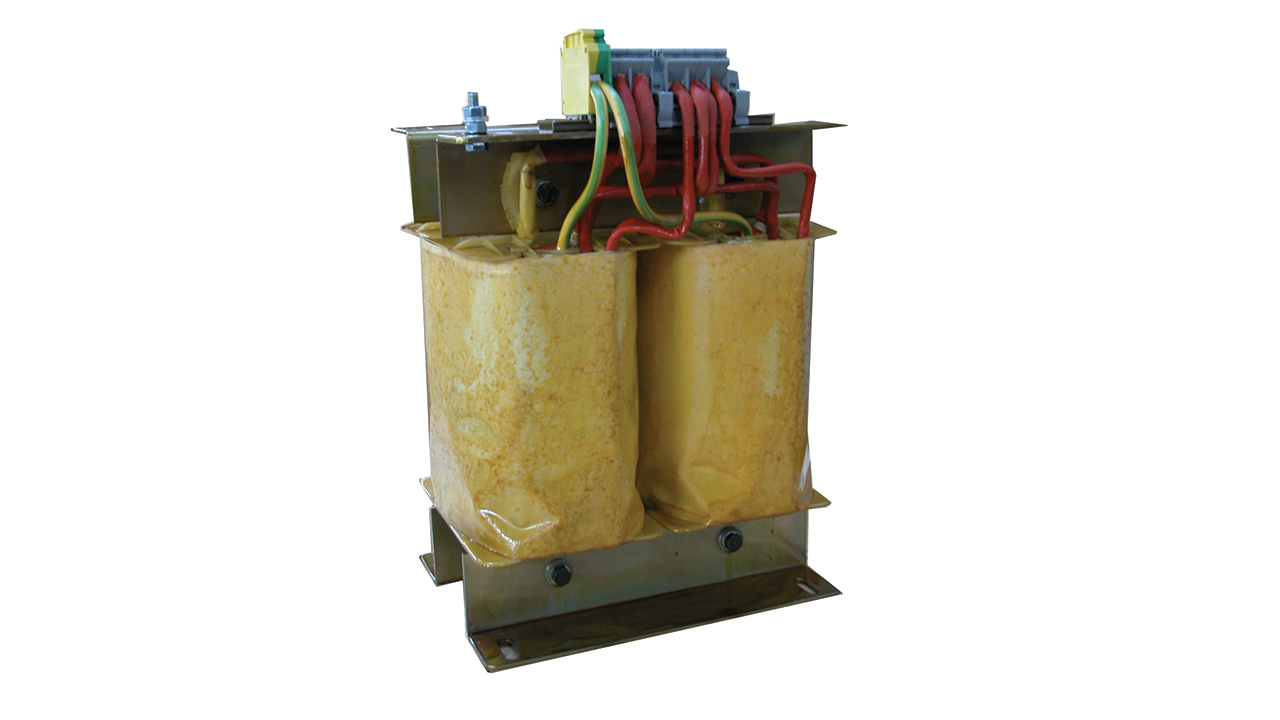

TMIFV – SINGLE PHASE ISOLATION TRANSFORMERS from 3 to 10kVA – for isolation of photovoltaic plants
SINGLE PHASE ISOLATION TRANSFORMERS from 3 to 10kVA – for isolation of photovoltaic plants

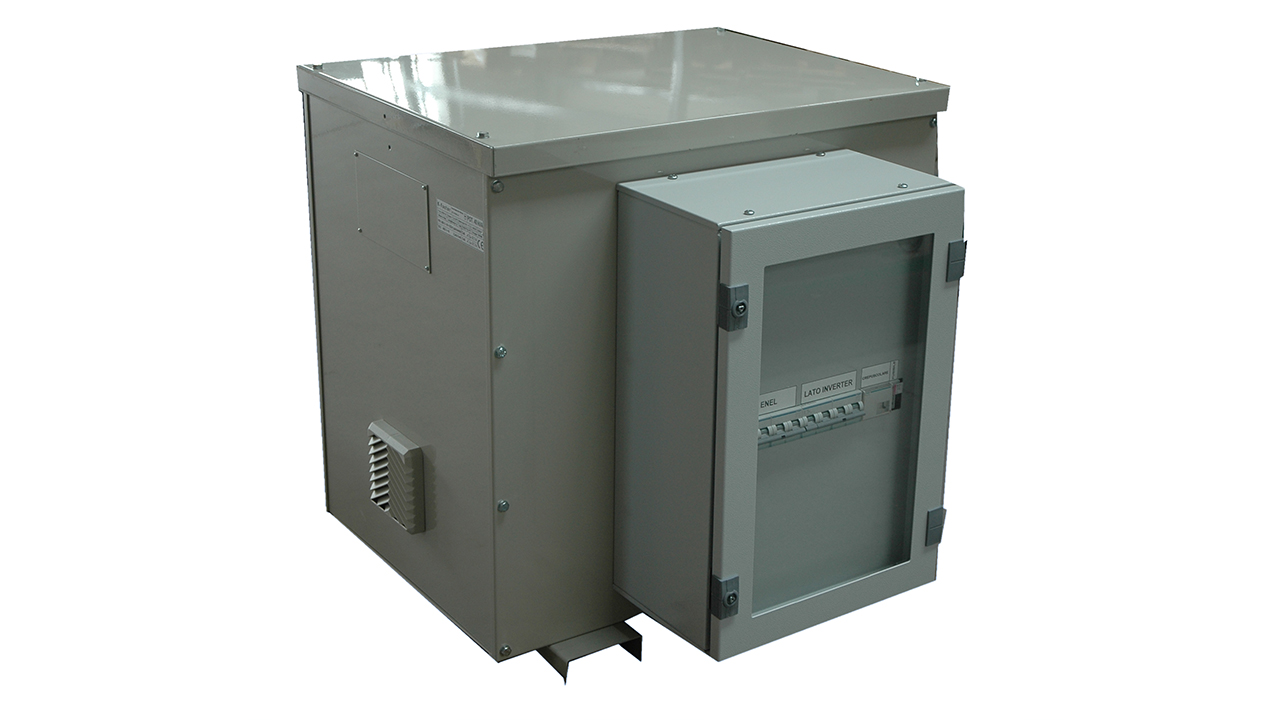

| Input/output rated voltage 230Vac Frequency 50/60Hz Open type construction IP00 protection degree Isolation class F (Ta max 35°C) Separated copper windings cl. H 200°C Max inrush current 12In Imp. V % < 5% Resin impregnated and tropicalized Copper earthed screen between primary and secondary Connections on terminals for DIN rail Low losses magnetic core Installation in metal enclosure available on request Applied standards : EN61558-2-4 Optional: lifting lugs THREE PHASE VERSION AVAILABLE HERE |
|
|
| FVJ VERSION | |||||||||||
| power VA |
part no. | losses W |
eff % |
dimensions mm. | DWG | weight kg |
box | ||||
| no load | load | total | a | b | c | ||||||
| 3 | TMI249FVJ | 42 | 96 | 138 | 95.42 | 200 | 270 | 255 | A | 27 | SAM02 |
| 4 | TMI267FVJ | 52 | 121 | 173 | 95.67 | 240 | 280 | 305 | A | 34 | SAM03 |
| 5 | TMI287FVJ | 60 | 149 | 209 | 95.81 | 240 | 290 | 305 | A | 39 | SAM03 |
| 6 | TMI307FVJ | 70 | 180 | 250 | 95.83 | 280 | 300 | 355 | A | 46 | SAM03 |
| 8 | TMI347FVJ | 82 | 194 | 276 | 96.55 | 280 | 310 | 355 | A | 58 | SAM03 |
| 10 | TMI387FVJ | 124 | 179 | 303 | 96.97 | 280 | 350 | 355 | A | 78 | SAM03 |
| VERSIONE FVK – ALTO RENDIMENTO-PERDITE BASSISSIME | |||||||||||
| power VA |
part no. | losses W |
eff % |
dimensions mm. | DWG | weight kg |
box | ||||
| no load | load | total | a | b | c | ||||||
| 3 | TMI249FVK | 21 | 81 | 102 | 96.58 | 200 | 260 | 255 | A | 24 | SAM02 |
| 4 | TMI267FVK | 26 | 110 | 136 | 96.61 | 240 | 270 | 305 | A | 31 | SAM03 |
| 5 | TMI287FVK | 30 | 130 | 161 | 96.77 | 240 | 280 | 305 | A | 35 | SAM03 |
| 6 | TMI307FVK | 35 | 135 | 170 | 97.17 | 240 | 290 | 305 | A | 42 | SAM03 |
| 8 | TMI347FVK | 42 | 195 | 237 | 97.04 | 280 | 300 | 355 | A | 50 | SAM03 |
| 10 | TMI387FVK | 53 | 202 | 255 | 97.44 | 280 | 320 | 355 | A | 62 | SAM03 |
 |
 |
| A | B |
