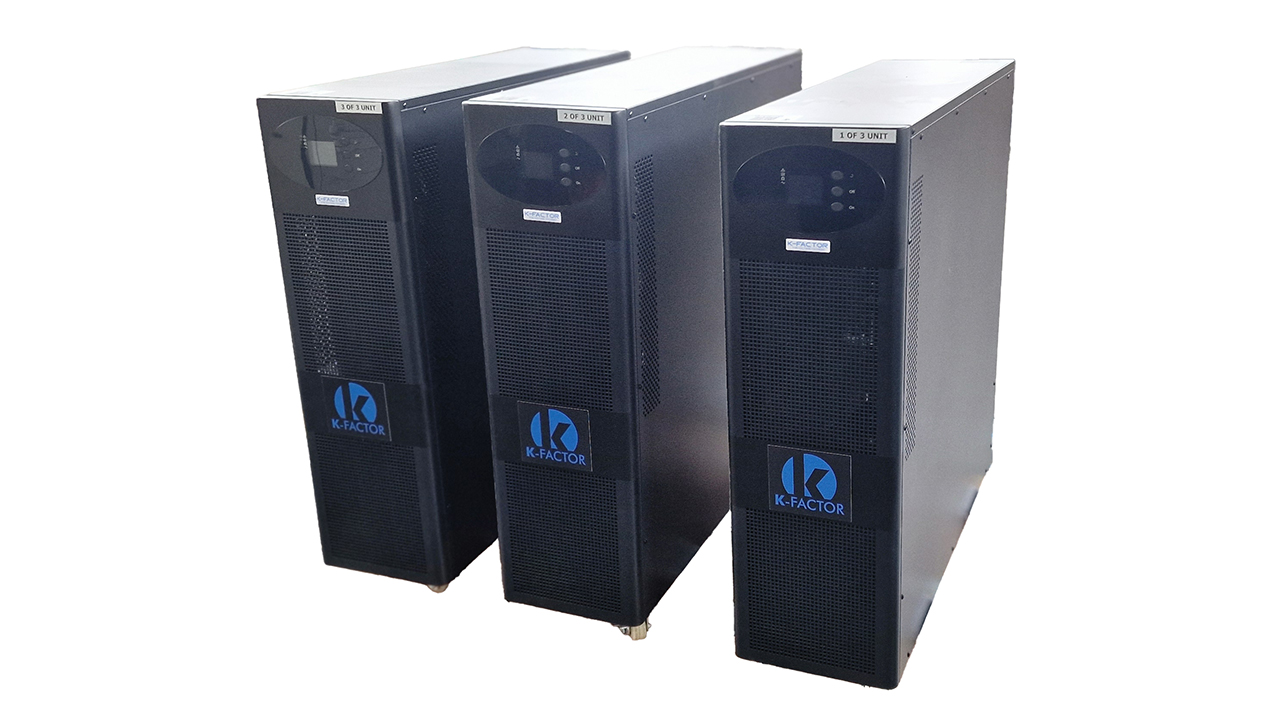

PLA-FC – THREE-PHASE FREQUENCY CONVERTERS, SINE WAVE DOUBLE CONVERSION, 10 TO 350KVA
THREE PHASE FREQUENCY CONVERTERS 50/60Hz PLA-FC FROM 10KVA TO 350KVA
| MODEL | PLA10-FC | PLA15-FC | PLA20-FC | PLA30-FC | PLA40-FC | PLA60-FC | ||||||||
| INPUT | Power | 10KVA
9KW |
15KVA
13.5KW |
20KVA
18KW |
30KVA
27KW |
40KVA
36KW |
60KVA
54KW |
|||||||
| No. of phases | 3 phase 4 wires + PE | |||||||||||||
| Rated voltage | 380/400/415Vac * | |||||||||||||
| Voltage interval | 208~478Vac | |||||||||||||
| Frequency range | 45-55Hz at 50Hz / 56-66Hz at 60Hz (auto setting) | |||||||||||||
| Power factor | ≥0.99 | |||||||||||||
| THDi current | ≤2%(100% non linear load) | |||||||||||||
| Input generator | Supported | |||||||||||||
| OUTPUT | No. of phases | 3 phase 4 wires + PE | ||||||||||||
| Rated voltage | 380/400/415Vac * | |||||||||||||
| Power factor | 0.9 | |||||||||||||
| Voltage accuracy | ±1% | |||||||||||||
| Frequency | 50/60 Hz ±1% of rated frequency | |||||||||||||
| Crest factor | 3:1 | |||||||||||||
| THD | ≤1% with linear load | |||||||||||||
| ≤3% with non linear load | ||||||||||||||
| Efficiency (standard mode) | ≥96,5% | ≥97,5% | ||||||||||||
| PROTECTION | overload | Load ≤110%: 60min，≤125%:10’ ≤150%: 1’ ≥150% immediate disconnection | ||||||||||||
| Short circuit | Yes | |||||||||||||
| Overtemperature | Immediate switch off | |||||||||||||
| Self test | When circuit switched on and by software | |||||||||||||
| EPO (optional) | Immediate switch off | |||||||||||||
| Noise suppression | According to EN62040-2 | |||||||||||||
| Alarms | Acoustic and led | Input off, overload, fault | ||||||||||||
| Display | LED and LCD | Line mode, overload, fault | ||||||||||||
| LCD display | Input voltage, input frequency, output voltage, output frequency, load %, internal temperature | |||||||||||||
| Communication interface | USB, RS485, Parallel (optional), dry contacts, intelligent slot, SNMP card (optional), relay card (optional) | |||||||||||||
| Environment | Ambient temperature | 0°C～40°C | ||||||||||||
| Warehouse temperature | -25°C～55°C | |||||||||||||
| Humidity | 0～95% non condensing | |||||||||||||
| Altitude | < 1500m.; >1500m derating applies | |||||||||||||
| Noise level | < 55dB | < 58dB | < 55dB | |||||||||||
| Other | Dimensions (P×L×H) | 828x250x868 | 2 x
828x250x868 |
|||||||||||
| weight (Kg) | 42 | 45 | 45 | 71 | 73 | 2 x 71 | ||||||||
| Units | 1 | 2 | ||||||||||||
| Standards applied | CE,EN/IEC 62040-3,EN/IEC 62040-1-1 | |||||||||||||
* different input/output voltages available on request. Item code will be PLAxxFC-yyyy where yyyy represents voltage combination
| MODEL | PLA80-FC | PLA100-FC | PLA120-FC | PLA160-FC | PLA180-FC | PLA200-FC | |||||
| INPUT | Power | 80KVA
72KW |
100KVA
90KW |
120KVA
108KW |
160KVA
144KW |
180KVA
162KW |
200KVA
180KW |
||||
| No. of phases | 3 phase 4 wires + PE | ||||||||||
| Rated voltage | 380/400/415Vac * | ||||||||||
| Voltage interval | 208~478Vac | ||||||||||
| Frequency range | 45-55Hz at 50Hz / 56-66Hz at 60Hz (auto setting) | ||||||||||
| Power factor | ≥0.99 | ||||||||||
| THDi current | ≤2%(100% non linear load) | ||||||||||
| Input generator | Supported | ||||||||||
| OUTPUT | No. of phases | 3 phase 4 wires + PE | |||||||||
| Rated voltage | 380/400/415Vac * | ||||||||||
| Power factor | 0.9 | ||||||||||
| Voltage accuracy | ±1% | ||||||||||
| Frequency | 50/60 Hz ±1% of rated frequency | ||||||||||
| Crest factor | 3:1 | ||||||||||
| THD | ≤1% with linear load | ||||||||||
| ≤3% with non linear load | |||||||||||
| Efficiency (standard mode) | ≥97,5% | ||||||||||
| PROTECTION | overload | Load ≤110%: 60min，≤125%:10’ ≤150%: 1’ ≥150% immediate disconnection | |||||||||
| Short circuit | Yes | ||||||||||
| Overtemperature | Immediate switch off | ||||||||||
| Self test | When circuit switched on and by software | ||||||||||
| EPO (optional) | Immediate switch off | ||||||||||
| Noise suppression | According to EN62040-2 | ||||||||||
| Alarms | Acoustic and led | Input off, overload, fault | |||||||||
| Display | LED and LCD | Line mode, overload, fault | |||||||||
| LCD display | Input voltage, input frequency, output voltage, output frequency, load %, internal temperature | ||||||||||
| Communication interface | USB, RS485, Parallel (optional), dry contacts, intelligent slot, SNMP card (optional), relay card (optional) | ||||||||||
| Environment | Ambient temperature | 0°C～40°C | |||||||||
| Warehouse temperature | -25°C～55°C | ||||||||||
| Humidity | 0～95% non condensing | ||||||||||
| Altitude | < 1500m.; >1500m derating applies | ||||||||||
| Noise level | < 58dB | < 55dB | < 58dB | ||||||||
| Other | Dimensions (P×L×H) | 2x
828x250x868 |
3x
828x250x868 |
4 x
828x250x868 |
|||||||
| weight (Kg) | 2 x 73 | 3 x 71 | 3 x 73 | 4 x 73 | |||||||
| Units | 2 | 3 | 4 | ||||||||
| Standards applied | CE,EN/IEC 62040-3,EN/IEC 62040-1-1 | ||||||||||
* different input/output voltages available on request. Item code will be PLAxxFC-yyyy where yyyy represents voltage combination
| MODEL | PLA250FC | PLA300FC | PLA320FC | PLA350FC | ||||||||
| Input | Power | 250KVA
240KW |
300KVA
288KW |
320KVA
288KW |
350KVA
288KW |
|||||||
| No of Phases | 3 phase 4 wires + earth | |||||||||||
| Rated voltage | 380/400/415Vac * | |||||||||||
| Voltage range | 208~480Vac | |||||||||||
| Frequency range | 45-55Hz at 50Hz / 56-66Hz at 60Hz (auto sensing) | |||||||||||
| Power factor | ≥0.99 | |||||||||||
| THDi current | ≤2%(100% non linear load) | |||||||||||
| Input from genset | – | |||||||||||
| Output | Fasi | 3 phase 4 wires + earth | ||||||||||
| No of Phases | 380/400/415Vac * | |||||||||||
| Rated voltage | 0.9 | 0.8 | ||||||||||
| Voltage accuracy | ±1% | |||||||||||
| Frequency | 50/60 Hz ±1% of rated freqyebcy | |||||||||||
| Crest factor | 3:1 | |||||||||||
| THD | ≤1% linear load | |||||||||||
| ≤4% non linear load | ||||||||||||
| Efficiency | ≥96,5% | |||||||||||
| Protection | Overload | Load ≤110%: 60min，≤125%:10’ ≤150%: 1’ ≥150% immediate disconnection | ||||||||||
| Short circuit | yes | |||||||||||
| overheating | Immediate switch off | |||||||||||
| self test | When circuit switched on and by software | |||||||||||
| EPO (optional) | Immediate switch off | |||||||||||
| Noise suppression | According to EN62040-2 | |||||||||||
| Alarms | Acoustic and led | Input off, overload, fault | ||||||||||
| Display | LED and LCD state | Line mode, overload, fault | ||||||||||
| LCD screen information | Input voltage, input frequency, output voltage, output frequency, load %, internal temperature | |||||||||||
| Communication interfaces | SB, RS485, Parallel (optional), dry contacts, intelligent slot, SNMP card (optional), relay card (optional) | |||||||||||
| Environment | Working temperature | 0°C～40°C | ||||||||||
| Warehouse temperature | -25°C～55°C | |||||||||||
| Humidity | 0～95% non condensing | |||||||||||
| Altitude | < 1500m. when >1500m derating is required | |||||||||||
| Noise Level | < 58dB | |||||||||||
| Other | Dimensions (D×W×H) | 828x750x868 | 820x1000x868 | |||||||||
| Weight (Kg) | 3×72 | 4×72 | ||||||||||
| Units | 3 | 4 | ||||||||||
| According to the following standards | CE,EN/IEC 62040-3,EN/IEC 62040-1-1, EN/IEC60950-1 , IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8 | |||||||||||
* different input/output voltages available on request. Item code will be PLAxxFC-yyyy where yyyy represents voltage combination
