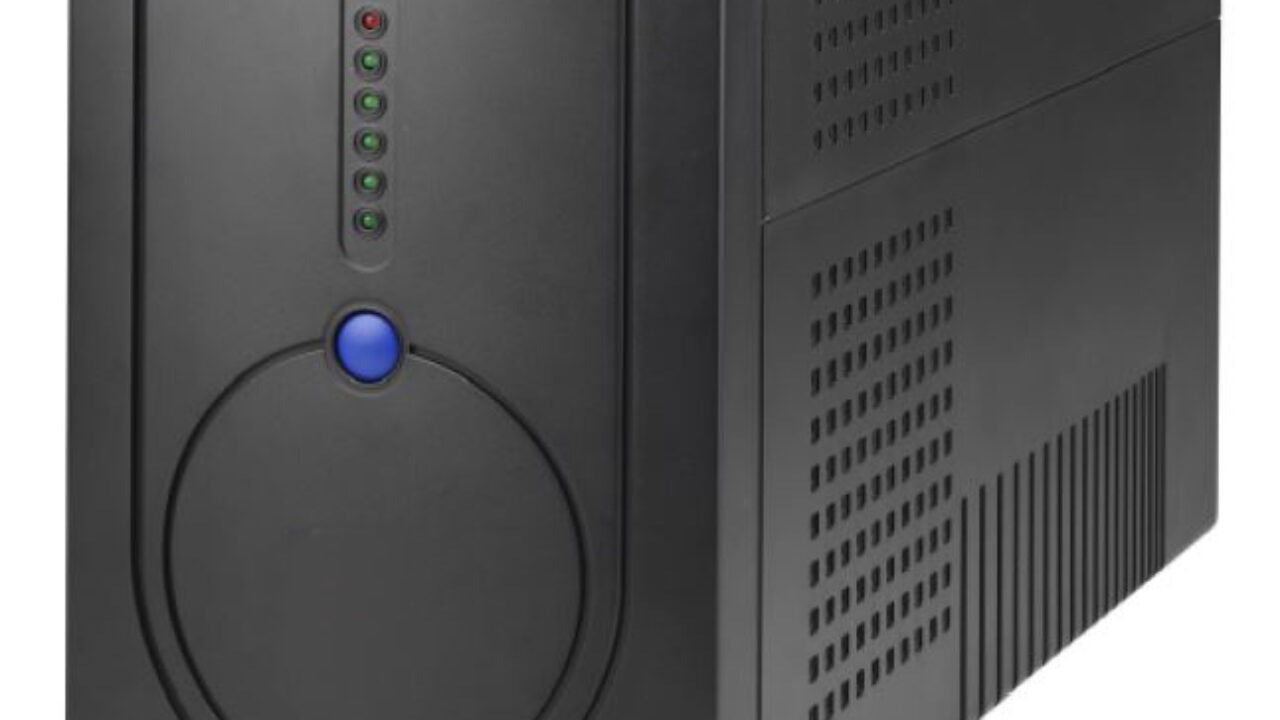

VE – UPS TOWER LINE INTERACTIVE, SIMULATED SINE WAVE, 0.45 TO 3KVA
UPS TOWER LINE INTERACTIVE, SIMULATED SINE WAVE, FROM 0.45 TO 3KVA
 |
 |
 |
 |
| VE0450-VE0650-VE0850 | VE1000 | VE1500-VE2000 | VE3000 |
The VE series is available in powers from 450VA to 3000VA with digital technology; this series is suitable for powering any electrical and electronic system, in the event of a power failure via the inverter, or voltage fluctuations via the AVR
CHARACTERISTICS
- Compact size
- High quality microprocessor control ensures high reliability
- Network stabilization with AVR system
- Auto-restart when network returns
- Simulated sine wave
- Battery charger in operation even with UPS off
- Cold start function (ignition without mains)
- USB/RS-232 port and RJ-11 telephone security
COMMUNICATION
Software for all operating systems and network environments, UPSILON 2000 supervision and shut-down platform
24 MONTHS WARRANTY

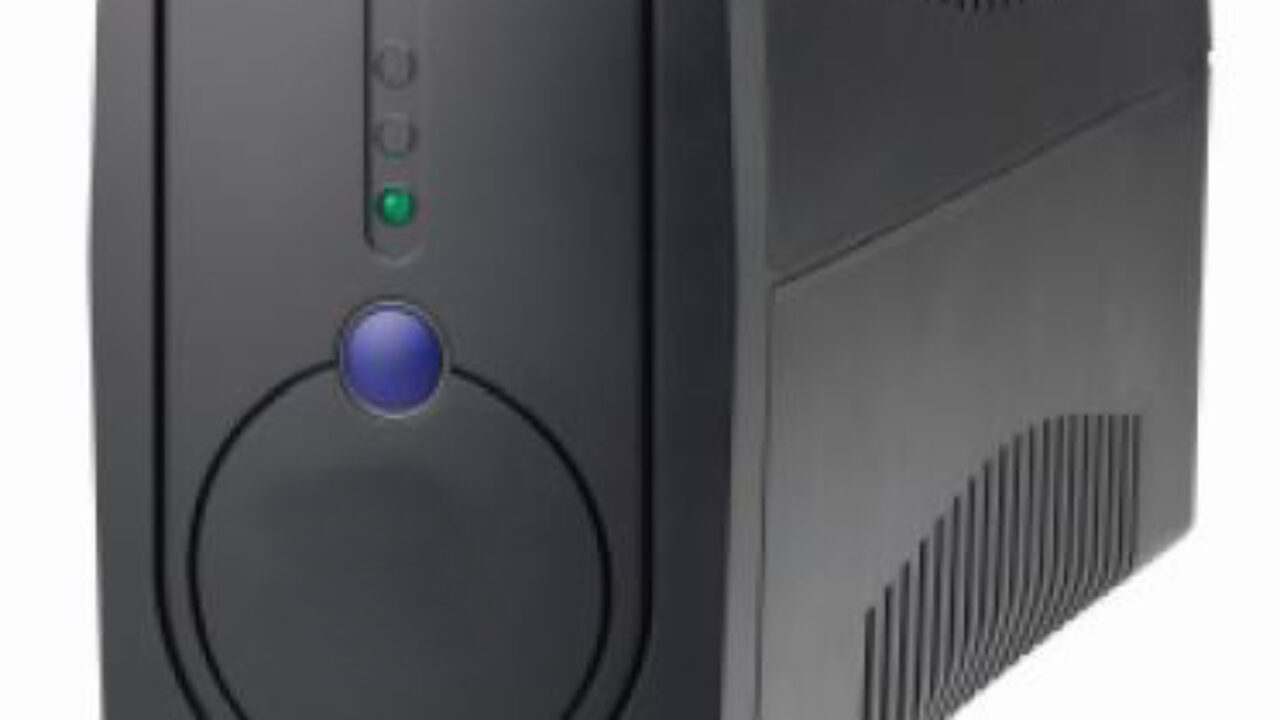

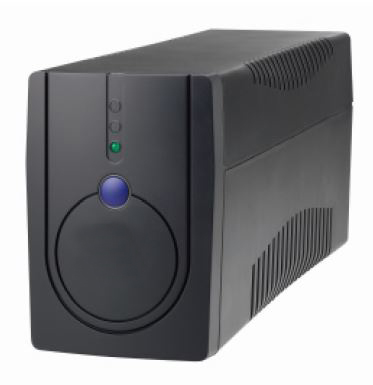

| MODEL | VE0450 ** | VE0650 ** | VE0850 |
| POWER | 450 VA / 240 W | 650 VA / 360 W | 850 VA / 480 W |
| INPUT | |||
| Volt | 110/120 VAC o 220/230/240 VAC | ||
| Input voltage range | 81-145 VAC / 162-290 VAC | ||
| Input frequency range | 60/50 Hz (auto setting) | ||
| OUTPUT | |||
| Output voltage accuracy (Batt. Mode) | ±10% | ||
| Output frequency accuracy (Batt. Mode) | 60 Hz o 50 Hz ±1 Hz | ||
| Intervention time | 2-6 ms, 10ms max. | ||
| Wave form (Batt. Mode) | Simulated sine wave | ||
| BATTERIES | |||
| Type and quantity | 12 V/4.5 AH x 1 | 12 V/7 AH x 1 | 12 V/9 AH x 1 |
| Back-up time (1 PC load @ 120 W) | 5 min. | 10 min. | 15 min. |
| Typical recharging time | 4-6 hours 90% load capacity | ||
| SIGNALS | |||
| Mains present | Green led | ||
| Battery mode | Intermittent green led | ||
| PROTECTIONS | |||
| Full Protection |
Overload, battery discharge and overcharge |
||
| ALARMS | |||
| Battery mode | Beep every 10” | ||
| Exhausted battery | Beep every 1” | ||
| Overload | Beep every 0.5” | ||
| Battery to be replaced | Beep every 2” | ||
| Fault | Beep continuous | ||
| DIMENSIONS AND WEIGHT | |||
| Dimensions, W x D x H (mm) | 100 x 287 x 142 | ||
| Weight (kg) | 3,55 | 4,25 | 4,9 |
| ENVIRONMENT DATA | |||
| Humidity | 0-90 % RH @ 0- 40°C (without condensation) | ||
| Audible noise | < 40dB | ||
| INTERFACE | |||
| USB Port |
Supports Windows Family |
||
| ** available for batches 100+ | |||

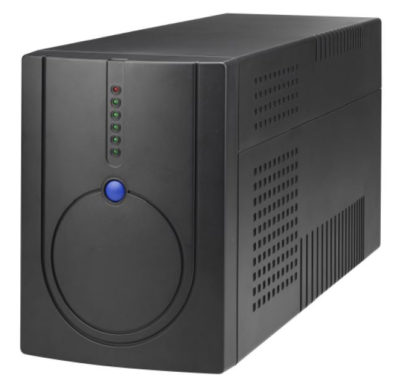

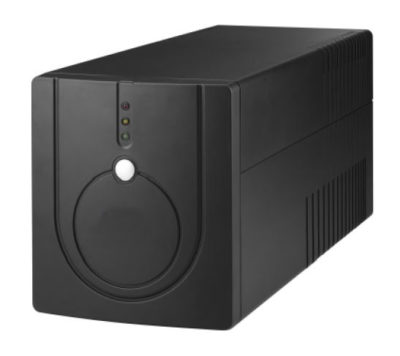

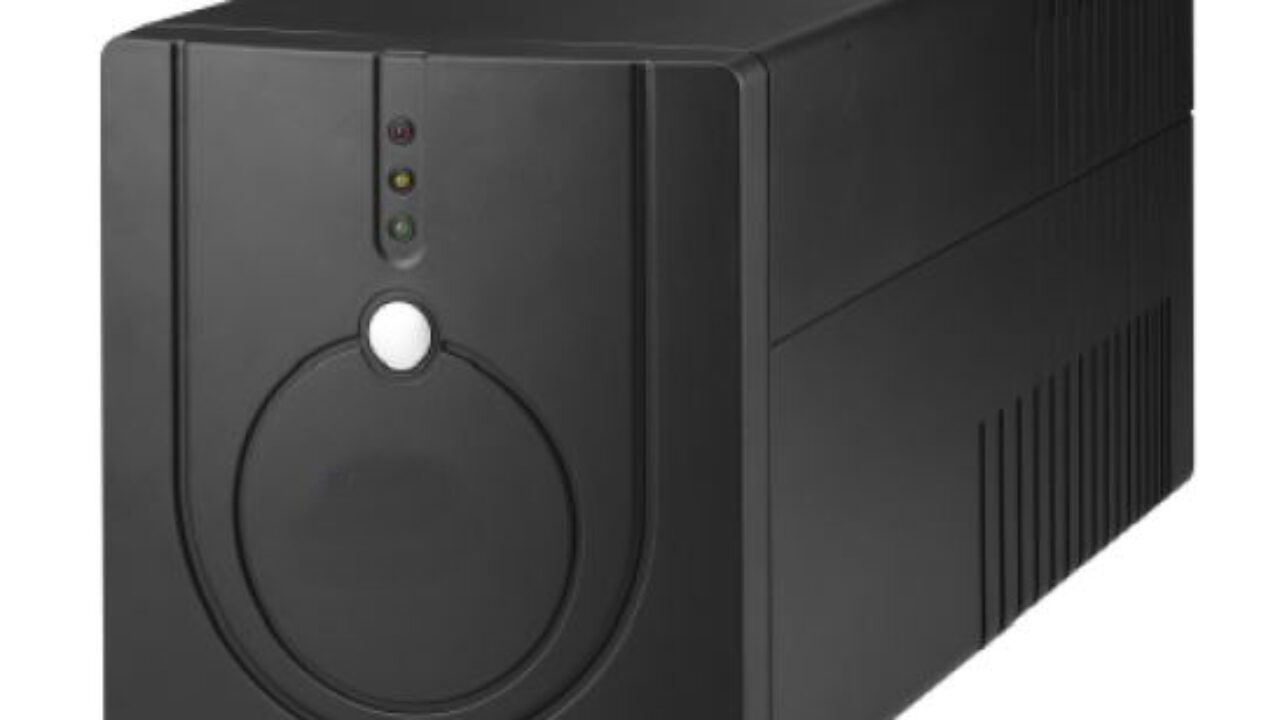

| MODEL | VE1000 | VE1500 | VE2000 | ||
| POWER | 1000 VA / 600 W | 1500 VA / 900 W | 2000 VA / 1200 W | ||
| INPUT | |||||
| Volt | 110/120 VAC o 220/230/240 VAC | ||||
| Input voltage range | 81-145 Vac / 162-290 VAC | ||||
| Input frequency range | 60/50 Hz (auto setting) | ||||
| OUTPUT | |||||
| Output voltage accuracy (Batt. Mode) | ±10% | ||||
| Output frequency accuracy (Batt. Mode) | 60 Hz o 50Hz ±1 Hz | ||||
| Intervention time | 2-6ms, 10ms max. | ||||
| Wave form (Batt. Mode) | Simulated sine wave | ||||
| BATTERIES | |||||
| Type and quantity | 12 V/7 AH x 2 | 12 V/9 AH x 2 | 12 V/9 AH x 2 | ||
| Back-up time (1 PC load @ 120 W) | 30 min. | 40 min. | 50 min. | ||
| Typical recharging time | 4-6 hours 90% load capacity | ||||
| SIGNALS | |||||
| Mains present | Green Led ON | GREEN LED ON & from 2nd to 5th green Led gradually on showing the charging level | |||
| Battery mode | Intermittent Yellow Led | Intermittent Yellow Led & from 5th to 2nd green Led gradually off showing the charging level | |||
| Fault | Red Led ON | Red Led ON | |||
| PROTECTIONS | |||||
| Full Protection |
Overload, battery discharge and overcharge |
||||
| ALARMS | |||||
| Battery mode | Beep every 10” | ||||
| Exhausted battery | Beep every 1” | ||||
| Overload | Beep every 0.5” | ||||
| Battery to be replaced | Beep every 2” | ||||
| Fault | Beep continuous | ||||
| DIMENSIONS AND WEIGHT | |||||
| Dimensions, W x D x H (mm) | 146 x 350 x 160 | 146 x 397 x 205 | |||
| Weight (kg) | 8,0 | 11,1 | 11,5 | ||
| ENVIRONMENT DATA | |||||
| Humidity | 0-90 % RH @ 0- 40°C (without condensation) | ||||
| Audible noise | < 40dB | ||||
| INTERFACE | |||||
| USB Port |
Supports Windows Family |
||||

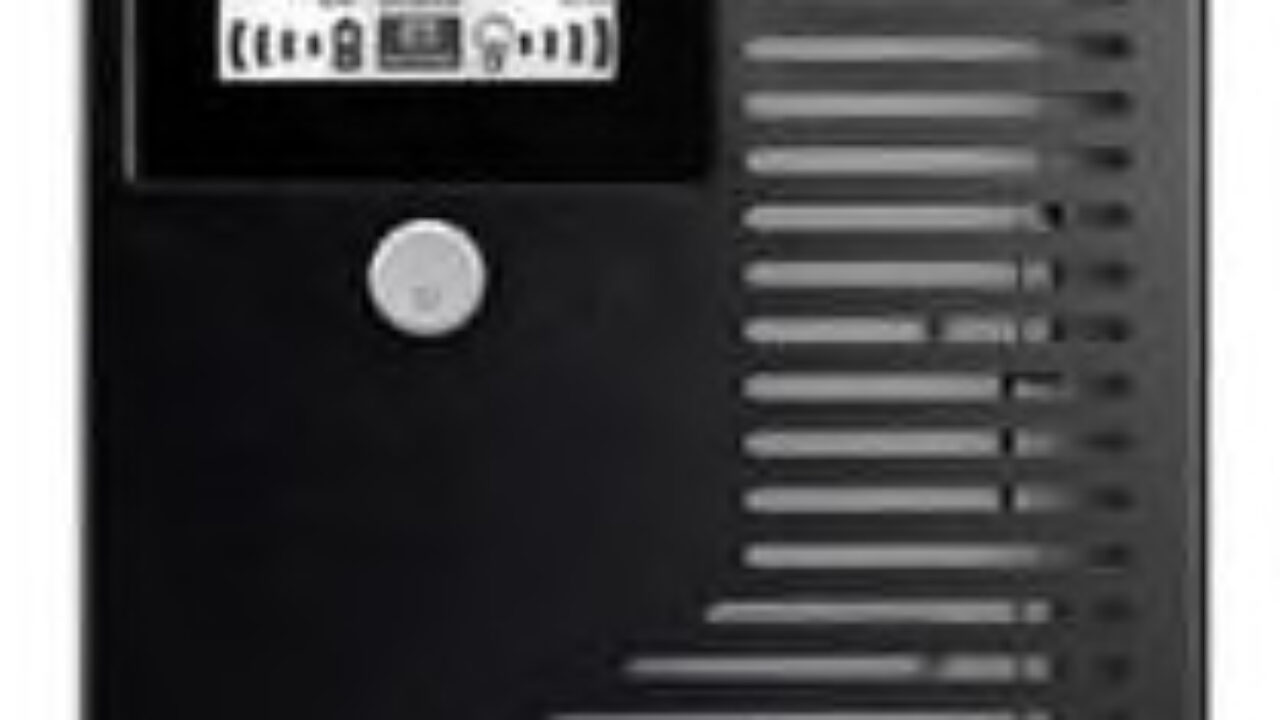

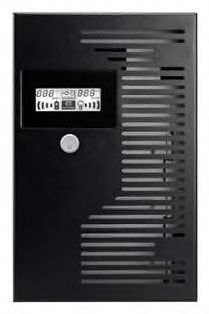

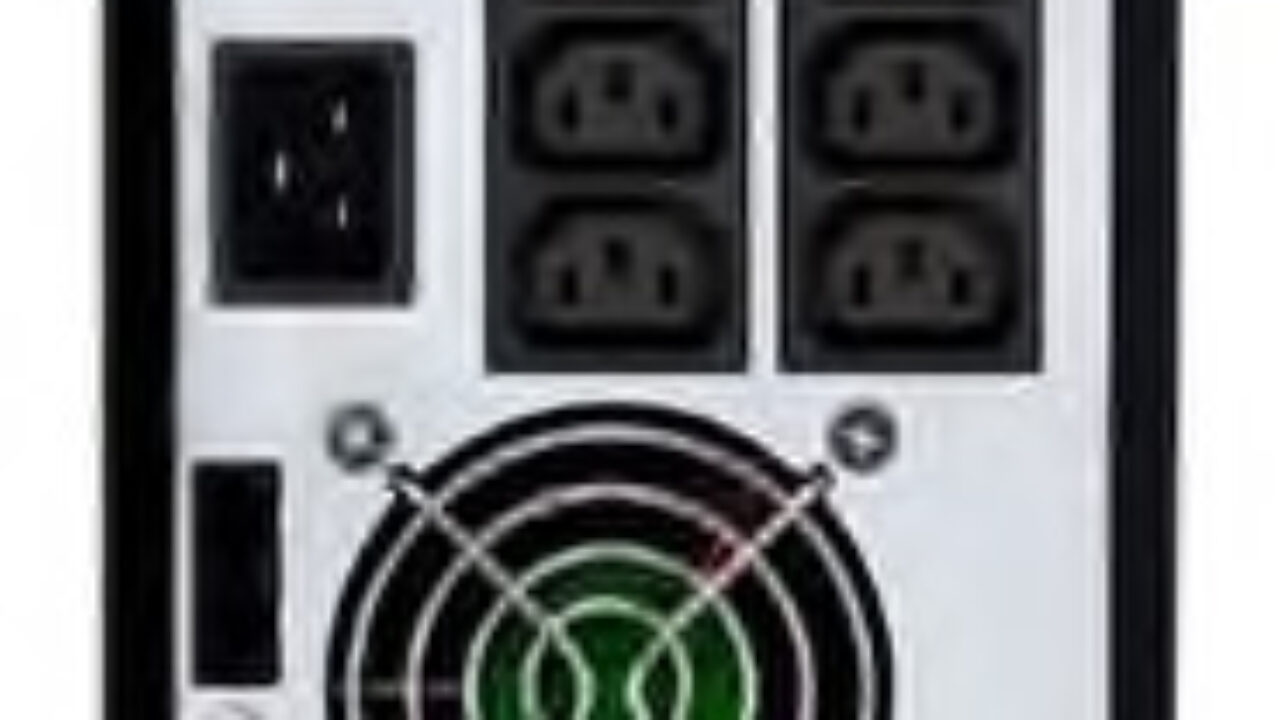

| MODEL | VE3000 |
| POWER | 3000VA / 1800W |
| INPUT | |
| Volt | 220/230/240 VAC |
| Input voltage range | 162-290 VAC |
| Input frequency range | 60/50 Hz (auto setting) |
| OUTPUT | |
| Output voltage | 220/230/240 VAC |
| Output voltage accuracy (Batt. Mode) | ±10% |
| Output frequency accuracy (Batt. Mode) | 60Hz o 50Hz ±1 Hz |
| Intervention time | 2-6 ms, 10ms max. |
| Wave form (Batt. Mode) | Simulated sine wave |
| BATTERIES | |
| Type and quantity | 12 V/9 AH x 4 |
| Back-up time (1 PC load @ 120 W) | 120 min. |
| Typical recharging time | 4-6 hours 90% load capacity |
| SIGNALS | |
| Display LCD |
Line mode; Battery mode; Battery level; input and output voltage; overload; fault; low battery |
| PROTECTIONS | |
| Full Protection |
Overload, battery discharge and overcharge |
| ALARMS | |
| Battery mode | Beep every 10” |
| Exhausted battery | Beep every 1” |
| Overload | Beep every 0.5” |
| Battery to be replaced | Beep every 2” |
| Fault | Beep continuous |
| DIMENSIONS AND WEIGHT | |
| Dimensions, W x D x H (mm) | 495 x 150 x 250 |
| Net weight (kg) | 25 |
| ENVIRONMENT DATA | |
| Humidity | 0-90 % RH @ 0- 40°C (without condensation) |
| Audible noise | < 40dB |
| INTERFACE | |
| USB Port |
Supports Windows Family |
Download the datasheet for the Manual Bypass here.
Download the datasheet for the USB Communication Protocol here.
