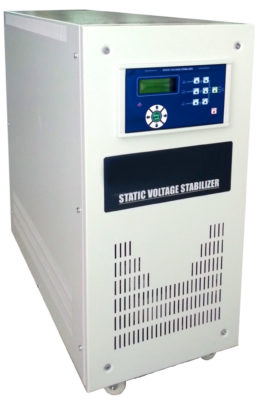

IMPR3 – THREE PHASE ELECTRONIC STATIC VOLTAGE STABILIZERS FROM 10KVA TO 3200KVA

IMP Static Voltage Stabilizer are devices for voltage control, protection and management, microprocessor controlled, featuring high speed semiconductor technology. They adjust the voltage to the right value required by industrialdevices that are fastly growing and becoming more sensitive; they are designed to meet their continuous, settled and secure energy needs.

Nowadays, thousands of users who have totally different characteristics such as plants, hospitals, public buildings, houses, farms, constructions etc. use the same main grid. IMP Static Voltage Stabilizer optimizes the irregular electricity which different users receive from city main grid at the same time, in accordance with only your business and the electronic devices you use.

IMP Static Voltage Stabilizer which can be produced in a very wide input voltage interval for places where grid voltages drop or rise excessively; evaluates gird voltage decreases and increases in 0.020 seconds when the main grid voltage drops -60% or rises +%40 and corrects with 500V/sec. Speed. By this means, your expensive industrial devices are protected against dangerous voltage changes and also it enables your systems to work with high efficiency and without interruption.

IMP Static Voltage Stabilizer is developed to solve the technical problems the users experience with Variac Type Voltage Regulators with electro-mechanic structure which are widely used. Motor-chain systems used in electro-mechanic voltage regulators work slowly and this can not prevent many electronic devices from being affected by voltage decreases. With its microprocessor controlled semiconductor power control system, IMP Static Voltage Stabilizer works 10 times more faster than electro-mechanic systems. Brush-coal system which is used for transferring power in electro-mechanic regulators are not applicable for dusty and damp industrial environments and requires periodic maintenance. Semiconductor TRISTOR units used in IMP Static Voltage Stabilizer work in every kind of industrial environment without being affected by damp and without requiring maintenance. High energy losses arise because of large scale transformers and variac systems used in electro-mechanic systems. By using THYRISTOR units in IMP Static Voltage Stabilizer, energy losses are reduced to 2%.

IMP Static Voltage Stabilizer has High Voltage, Low Voltage, Over-temperature, Overload, Short Circuit and Phase Break protections for its own operating safety and also for all electronic devices in your business to work safely. There is a “Manual By-Pass” unit which enables the loads to be transferred directly to network voltage for providing usage flexibility and working safety. It is equipped with thermomagnetic fuses in its inputs and outputs.

IMP Static Voltage Stabilizer is designed with its compact, esthetic and modular structure, in such a way that it can be easily connected with electric systems everywhere in the world. “BUS-BAR PANEL INPUT-OUTPUT MODULE” which is required for direct connection can be added to BUS BAR systems optionally on request.

Information such as Input Voltage, Output Voltage, and Load Amount etc. can be viewed; breakdown and warning information can be followed on LCD DISPLAY which is standard in IMP SVS. One may reach devices over on the web, view all information on LCD DISPLAY and change set values of the device with “REMOTE VIEWING AND MANAGEMENT”

STRUCTURAL SPECIFICATIONS

• Production between power range of 10KVA-3200KVA, with three phase output.

• New technological design suitable for industrial environment, not affected by dust, moisture and vibration and does not need maintenance.
• Suitable for three phase unbalanced loads up to 100%
• Environmentalist design which is designed with the consciousness of a sustainable world, which is long-life and which does not produce chemical waste
• Efficiency increased with the consciousness of contributing to the reduction of carbon outputs and silent operation

• Safe usage for all electrical devices.
• Independent and fast control system with microprocessor controlled cards

• High voltage regulation speed (500 V / second)
• Flexible design and software property that can easily orient itself different grid and voltage conditions
• On / off and manual by-pass switch for working through grid, in cases where malfunction happens or when maintenance needs.
• Real static-modular design with TRISTOR technology used in power units and SMPS technology in feeding units
• Electronic protection against to over load, low voltage, high voltage, over temperature, over current and short circuit
• Aesthetic, ergonomic design

• Minimal size, long life

• Special, durable cabinet, powder coated with standard color named RAL-7035
• User friendly, easy and comprehensive LCD Display and mimic diagram
• Compact structure with high quality material and minimum malfunction hazard
• RS-232, ETERNET and MODBUS support with management and viewing module
• Surge Arrester against sudden voltage increases and streaks of lightning
• “Remote Management System” and software support which the user can remotely view and manage all of these information
• Production with ISO 9001:2008 Quality Management System
• Spare part providing guarantee for 10 years

• Broad service network

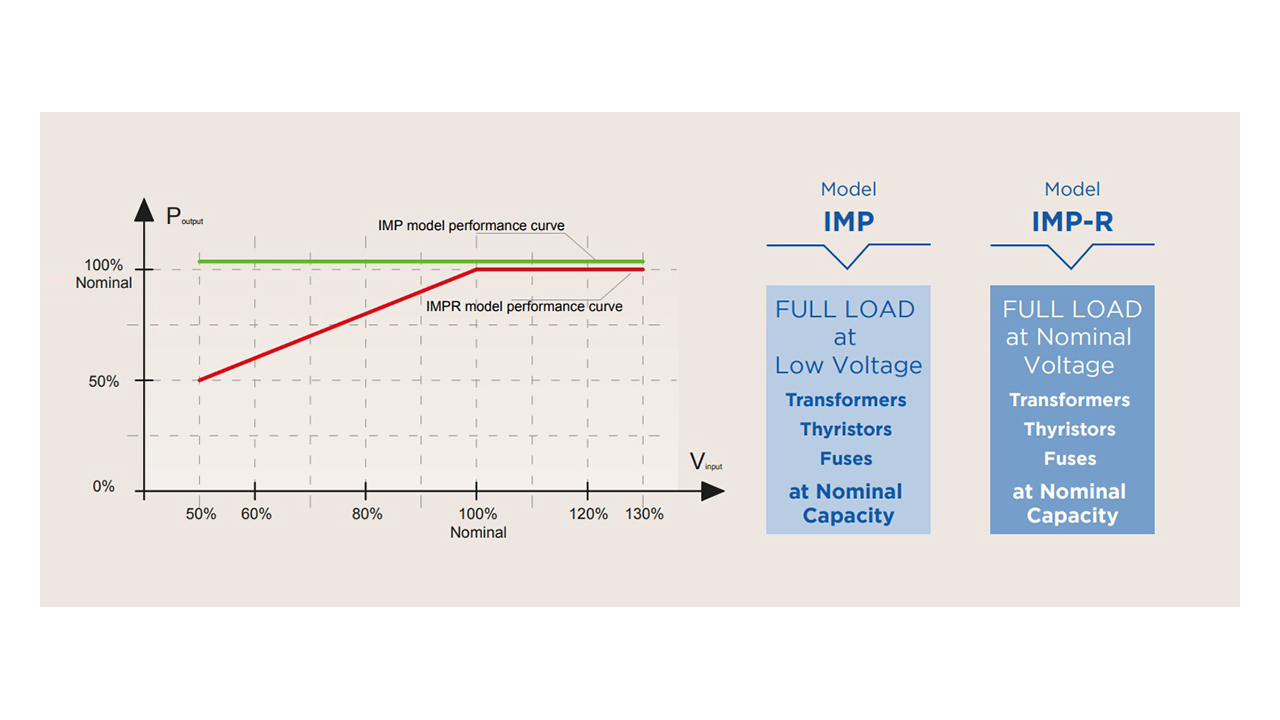

Model IMP-R voltage stabilizers are designed for applications that do not require low voltage full load performance. IMP-R can operate at full load at rated input voltage, when the input voltage decreases the output power decreases accordingly.

power

part no.

output
current

dimensions mm
(incl.protection of terminals)

weight

kVA

W

D

H

kg.

Download the datasheet for the Remote Management Unit (RMU) here.
