FLX – 19″/TOWER RACK UPS ONLINE DOUBLE CONVERSION, SINE WAVE, 1KVA TO 10KVA

Richiedi informazioni

Nome e Cognome (richiesto) *
Azienda (richiesto) *
La tua email (richiesto) *
Telefono (consigliato)
La tua richiesta
Privacy Policy *
Dichiaro di avere letto l'informativa sulla privacy e di autorizzare il trattamento dei dati personali. I dati saranno utilizzati esclusivamente per le finalità indicate, mantenuti riservati e in nessun caso saranno comunicati a terzi.

Download

Scheda tecnica

Manuale uso e manutenzione

Dichiarazione di conformità

MODEL			FLX01	FLX01.5		FLX03
RATED CAPACITY (VA/W)			1000VA / 900W	1500VA / 1500W		3000VA / 2400W
INPUT	Input		Single-phase + ground
	Nominal voltage		200/208/220/230/240 Vac
	Input voltage range		115±5VAC – 295±5VAC
	Operating frequency range		50Hz-60Hz ±10% (auto sensing)
	Power factor		≥0.98
	Input current		6.5A
OUTPUT	Output		Single-phase + Ground
	Nominal voltage		200/208/220/230/240VAC
	Power factor		0.9		1		0.8
	Output accuracy		±1%				±2%
	Frequency		50/60 Hz (SYNCHRONIZED TO INPUT)
	Crest factor		3:1
	Harmonic Distortion (THDv)		≤3% THD with linear load ≤5% THD with non-linear load
	Waveform		Pure Sine Wave
	Transfer time	Mains to battery	0ms
		Mains to bypass	10ms max (due to loss of utility)				4ms max (due to loss of utility)
BATTERY	Battery voltage		24Vdc	36Vdc		72Vdc
	Number of internal batteries		2	3		6
	Internal battery type		12V/7AH sealed lead acid maintenance free battery (only for standard UPS)
	Autonomy		10’ typical (only for standard UPS), For long autonomy UPS, the time is determined by the capacity of the connected batteries.
	Recharge time		8 hours to recover to 90% capacity (Standard UPS)
	Charge current (A)		1
ENVIRONMENT	Operating temperature		0°C ～ 40°C
	Storage temperature		-25°C ～ 40°C
	Relative humidity		20～90% RH 0-40°C non-condensing
	Altitude		＜3000m above sea level
	Noise level		<50dB @ 1m
PHYSICAL DATA	Dimensions WxHxD (mm)		440 x 86.5 x 430				440 x 131 x 520
	Net weight (Kg)		15.1		18		26
STANDARDS	SAFETY / EMC		IEC/EN62040-1-1, IEC/EN62040-2, IEC/EN60950-1

MODEL		FLX06	FLX10
Phases		Single-phase with ground
Power (VA/Watts)		6000VA / 5400W	10000VA / 9000W
INPUT
Nominal Voltage		208/220/230/240VAC
Operating Voltage Range	Low line transfer	187Vac±5% @ 100%-80% load 160Vac±5% @ 80%-70% load 140Vac±5% @ 70%-60% load 120Vac±5% @ 60%-50% load 110Vac±5% @ 50%-0% load (Ambient temperature <35°C)
	High line transfer	300Vac ±5%
	High line comeback	290Vac ±5%
Frequency range		50-60Hz
Power Factor		≥0.99@100% load (Nominal Input Voltage)
OUTPUT
Output voltage		208/220/230/240Vac
Power Factor		0.9
Voltage regulation		±1%
Frequency	On Mains	50-60Hz
	Battery	(50/60±0.1)Hz
Crest factor		3:1
Harmonic distortion (THDv)		≤2% THD with linear load ≤5% THD with non-linear load
Waveform		Sine wave
Transfer time	From mains to battery	Zero
	From inverter to bypass	4ms (typical)
Efficiency		>94% (AC mode) >89% (DC mode)	>94.5% (AC mode) >89% (DC mode)
BATTERY
Battery type		7Ah (in external battery cabinet)		9Ah (in external battery cabinet)
Number of batteries		16 (standard)
Autonomy		Depends on battery capacity
Recharge time		4 hours to 90% capacity (typical)
Recharge voltage		219.2 VDC ±1%
Recharge current		12A max, can be set from LCD
CHARACTERISTICS
Line Mode / Battery Mode		Ambient temperature <35℃ · 105%~110%: UPS shuts down after 60 minutes in battery mode or switches to Bypass with mains present. · 110%~130%: UPS shuts down after 5 minutes in battery mode or switches to Bypass with mains present. · >130%: UPS shuts down after 3 sec in battery mode or switches to Bypass with mains present. 35℃ < Ambient temperature <40℃ · 105%~110%: UPS shuts down after 1 minute in battery mode or switches to Bypass with mains present. · >110%: UPS shuts down after 3 sec in battery mode or switches to Bypass with mains present.
Short circuit		Entire system
Overtemperature		Normal mode: switches to Bypass; Battery mode: Shuts down the UPS immediately
Low battery voltage		Alarm and UPS shuts down
EPO (optional)		Shuts down the UPS immediately
Visual and audible alarms		Mains failure, Low battery, Overload, Fault
Communication interfaces		USB / RS232, SNMP card (optional), Relay card (optional)

CategoryUNINTERRUPTIBLE POWER SUPPLIESSingle-phase uninterruptible power supplies

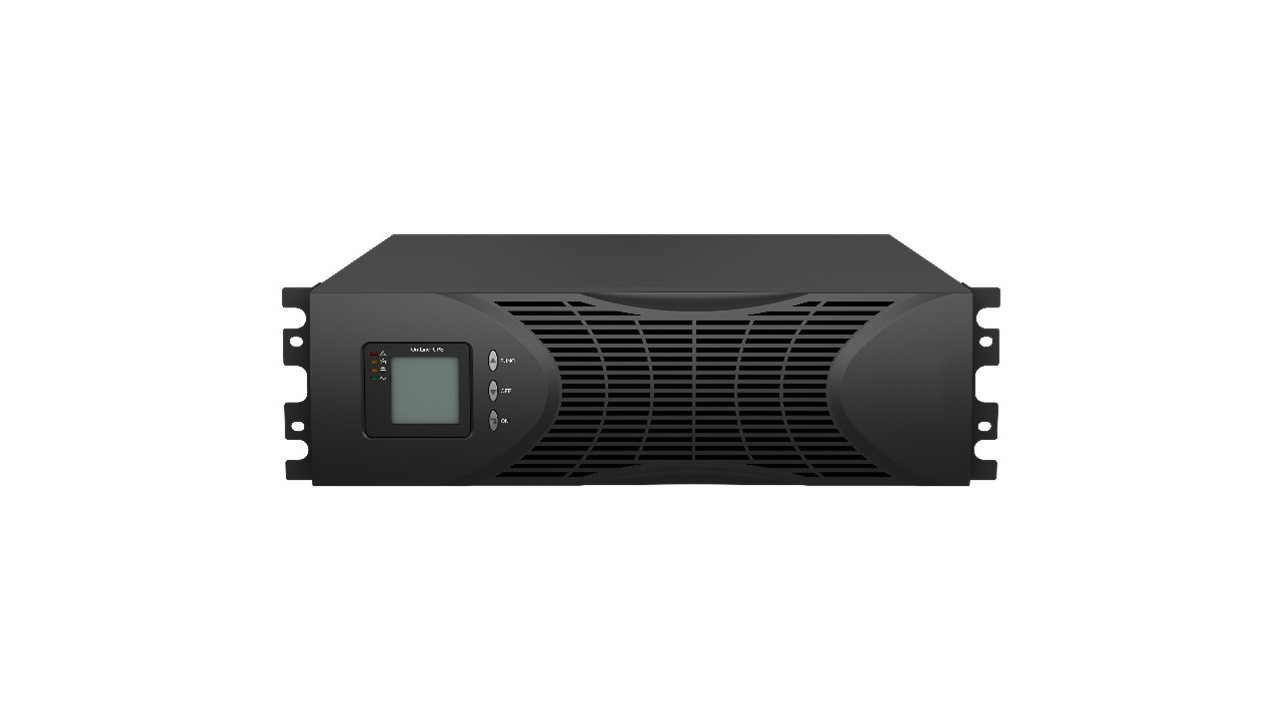

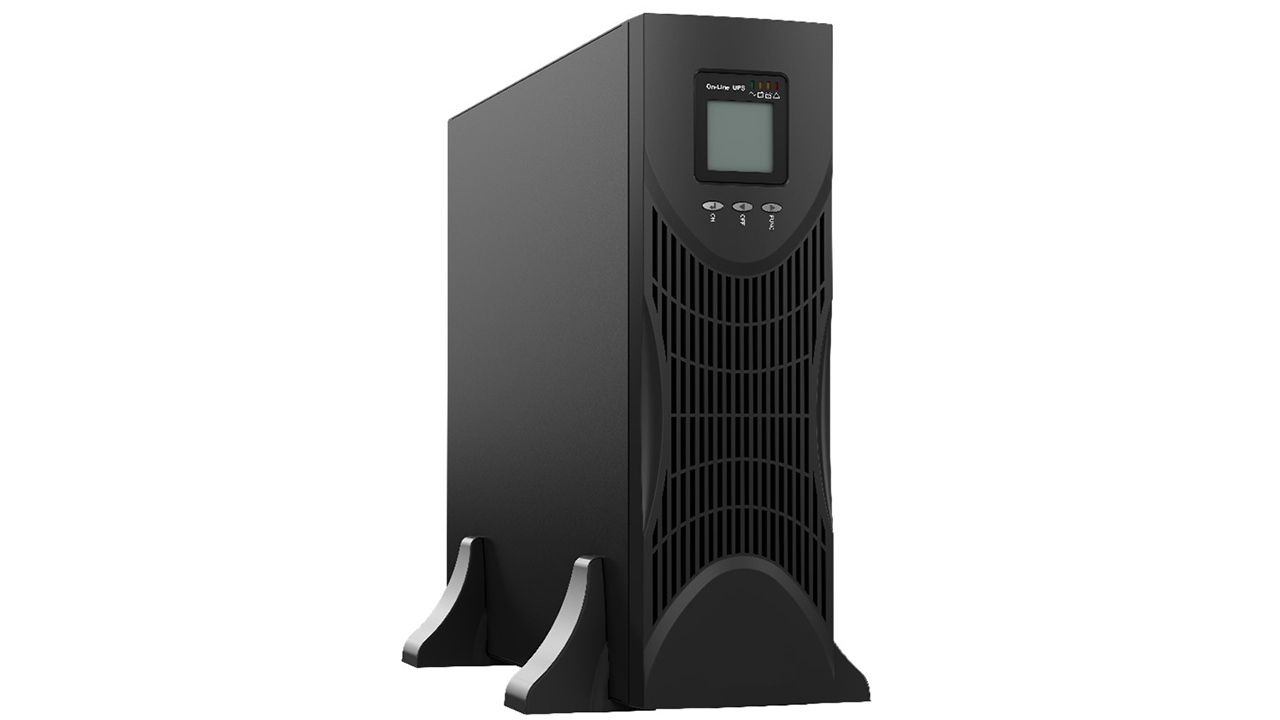

FLX – 19″/TOWER RACK UPS ONLINE DOUBLE CONVERSION, SINE WAVE, 1KVA TO 10KVA

On-line double conversion with Digital Signal Processor (DSP) digital control technology.

Among the main features that make this series highly efficient we point out:

High PF in input and output
Wide range of input tolerance (energy saving)
Eco Mode (Economic operation mode)
Flexibility and paralleling possibilities
Energy return protection and dedicated filtering (Surge Protection)
Monitoring and self-diagnosis at each start-up
Cold Start
By-pass
Possibility of autonomy expansion with additional battery boxes
USB port
Contact EPO
Software included
Intelligent SNMP network card slot

MODEL				FLX01	FLX01.5	FLX03
Type Input/Output				Single-phase grounded
Rated power				1000VA /900W	1500VA /1350W	3000VA /2700W
INPUT
Voltage rating				208/220/230/240Vac
Range of tension (Temp. Environment <40°C)		Low line transfer		176Vac±5% @100%-50% load 110Vac±5% @50%-0% load
		Low line comeback		186Vac±5% @100%-50% load 120Vac±5% @50%-0% load
		High line transfer		264Vac±5% @100%-50% load 300Vac±5% @50%-0% load
		High line comeback		254Vac±5% @100%-50% load 290Vac±5% @50%-0% load
Frequency Range **				40-70Hz
Power factor				0.99@100% load (Rated input voltage)
Bypass range				High voltage point Bypass 230-264: high voltage point setting in the LCD display from 230Vac to 264Vac. (Default: 264Vac) Low Voltage Point Bypass 176-220: Low voltage point setting on the LCD display from 176Vac to 220Vac. (Default: 176Vac)
Connection Type				IEC
Generator input				Supported
OUTPUT
Output Voltage *				208/220/230/240Vac
Power factor				0.9
Voltage regulation				±1%
Frequency	Normal Mode			46-54Hz or 56-64Hz
	Battery Mode			(50/60±0.1)Hz
Crest factor				3:1
Harmonic Distortion (THDv)				≤3% THD with linear load ≤5% THD with nonlinear load
Waveform				Pure sine wave
Switching time			Network <-> Battery	0 ms
			Inverter <-> Bypass	4 ms (Typical)
Efficiency				88% (AC mode) 85% (DC mode)	89% (AC mode) 86% (DC mode)	90% (AC mode) 87% (DC mode)
Connections				2x IEC 1x Schuko	6x IEC 1x Schuko – 1x Terminal Block L/W + T

BATTERY
Type		12V/9Ah
Quantity		2	3	6
Input Battery Voltage		24Vdc	36Vdc	72Vdc
Runtime		10min (refers to standard UPS only), for long-range UPS, the runtime time is determined by the battery capacity.
Typical charging time (standard model)		4 hours at 90% capacity
Charging voltage		27.4V ±1%	41.0 ±1%	82.1 ±1%
Charging current		1A
SYSTEM FEATURES
Overload	Normal Mode	105%~125%: UPS transfer to bypass after 1 minute when the network is normal 125%~130%: UPS transfer to bypass after 30 seconds when the network is normal >130%: UPS transfer to bypass immediately when the network is normal
	Battery Mode	105%~125%: UPS after 1 minute shuts down; 125%~130%: UPS after 10 seconds shuts down; >130%: UPS shuts down immediately
Short Circuit		Includes the entire system
Overtemperature		Normal Mode: Switch to Bypass; Battery Mode: Immediately shuts down the UPS
Low battery voltage		Alarm and shutdown
EPO		Immediately turns off the UPS
Visible and audible alarms		Mains failure, Low battery, Overcharge, System failure
Communication interface		USB (or RS232), SNMP card (optional), Relay card (optional)
ENVIRONMENT
Operating Temperature		0°C~40°C
Storage Temperature		-25°C~55°C
Relative humidity		20-90 % RH @ 0- 40°C (non-condensing)
Altitude		< 1500m
Noise		Less than 55dBA at 1 Meter
MECHANICAL SPECIFICATIONS
Dimensions W×D×H (mm)		44032586.5 (2U)	44046086.5 (2U)	440520131 (3U)
Net weight (kg)		11.3	16.5	26.2
STANDARDS
Safety		IEC/EN62040-1,IEC/EN60950-1
EMC		IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8

* Downgrades to 80% rating when the output voltage is regulated to 208V AC

** Downgrade to 75% rating when the input voltage frequency is out of range (50/60±4Hz)

Product specifications are subject to change without further notice.

MODEL		FLX06	FLX10
Stages		Single-phase grounded
Power (VA/Watts)		6000VA / 5400W	10000VA / 9000W
ENTRANCE
Rated voltage		208/220/230/240VAC
Working Voltage Range	Low line transfer	187Vac±5% @ 100%-80% load 160Vac±5% @ 80%-70% load 140Vac±5% @ 70%-60% load 120Vac±5% @ 60%-50% load 110Vac±5% @ 50%-0% load (Ambient temperature. <35°C)
	High line transfer	300Vac ±5%
	High line comeback	290Vac ±5%
Frequency range		50-60Hz
Power Factor		≥0.99@100% load (rated input voltage)
EXIT
Output voltage		208/220/230/240Vac
Power Factor		0,9
Voltage regulation		±1%
Frequency	On Network	50-60Hz
	Battery	(50/60±0.1)Hz
Crest factor		3:1
Harmonic Distortion (THDv)		≤2% THD with linear load ≤5% THD with nonlinear load
Waveform		Sinusoidale
Transfer time	From mains to battery	Zero
	Da inverter a bypass	4ms (typical)
Efficiency		>94% (AC mode) >89% (DC mode)	>94.5% (AC mode) >89% (DC mode)
BATTERY
Battery type		7Ah (in external battery cabinet)		9Ah (in external battery cabinet)
Number of batteries		16 (standard)
Autonomy		It depends on the capacity of the batteries
Charging time		4 hours at 90% capacity (typical)
Charging voltage		219.2 VDC ±1%
Charging current		12A max, can be set by LCD
FEATURES
Line Mode / Battery Mode		Ambient temperature <35°C · 105%~110%: UPS shuts down after 60 minutes in battery mode or switches to Bypass with mains present. · 110%~130%: UPS shuts down after 5 minutes in battery mode or switches to Bypass with mains present. · >130%: UPS shuts down after 3 sec in battery mode or switches to Bypass with mains present. 35°C< Ambient temperature <40°C · 105%~110%: UPS shuts down after 1 minute in battery mode or switches to Bypass with mains present. · >110%: UPS shuts down after 3 sec in battery mode or switches to Bypass with network present.
Short Circuit		Entire system
Overtemperature		Normal Mode: Toggle to Bypass; Battery Mode: Immediately turns off the UPS
Low battery voltage		Alarm and Ups Turns Off
EPO (optional)		Immediately turns off the UPS
Visual and audible alarms		Mains failure, Low battery, Overcharge, Fault
Communication interfaces		USB / RS232, SNMP card (optional), Relay card (optional)

ENVIRONMENT
Working Temperature	0°C~40°C
Storage Temperature	-25°C~55°C
Relative humidity	20-90 % RH @ 0- 40°C (non-condensing)
Altitude	< 1500m
Noise	Less than 50dBA at 1 Meter
MECHANICAL SPECIFICATIONS
Dimensions W×H×D (mm)	440132450 (3U)
Net weight (kg)	15
STANDARDS
Safety	IEC/EN62040-1,IEC/EN60950-1
EMC	IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
CABINET BATTERY
N° of batteries	16pcs max (7/9Ah)
Dimensions W×H×D (mm)	440132520 (3U)
Net weight (kg)	50
Remarks	Hot-swappable
