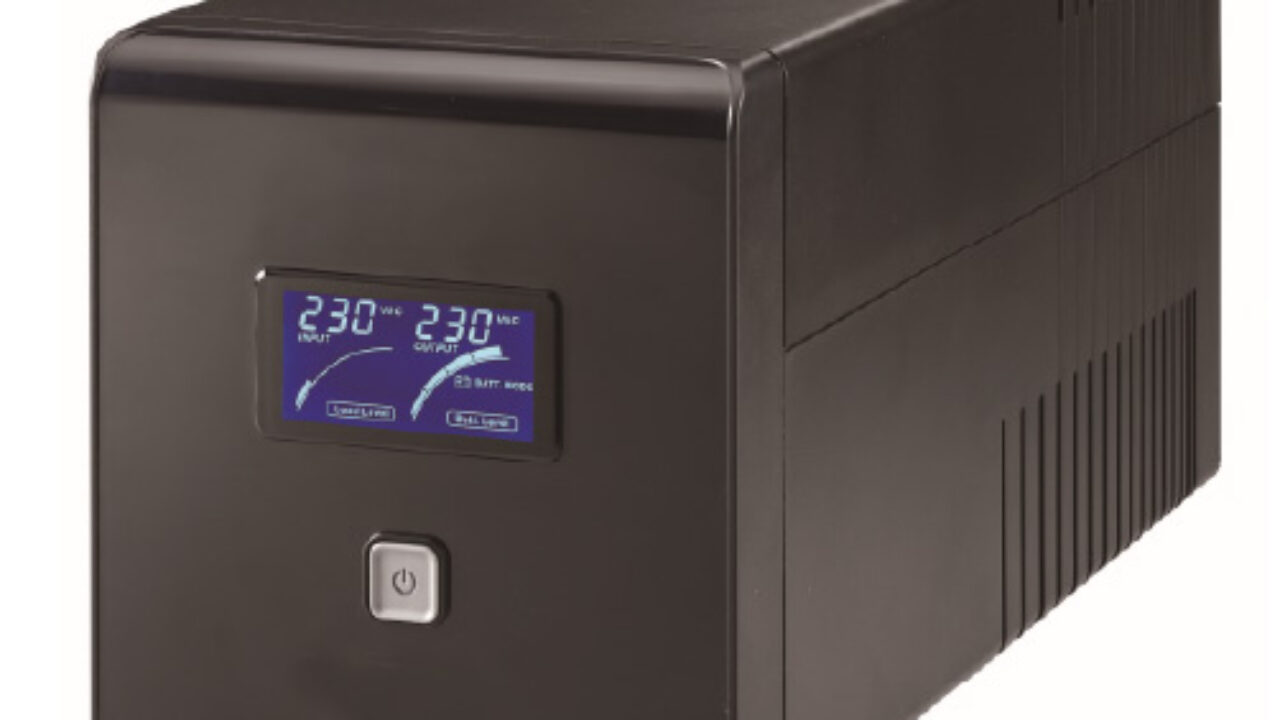

EIML – UPS TOWER LINE INTERACTIVE, SINE WAVE, 0.75 TO 2KVA
LINE INTERACTIVE TOWER TYPE UPS, PURE SINE WAVE, FROM 0.75 TO 2KVA
 |
 |

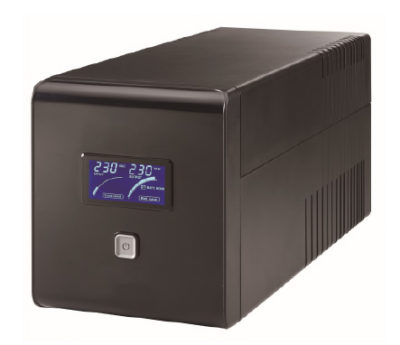

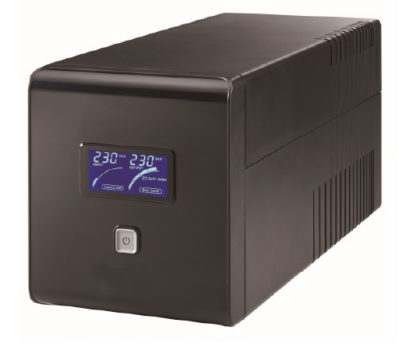

| EIML0750-EIML1000 | EIML1500-EIML2000 |
The EIML series is available from 750 to 2000VA with digital technology; This range is suitable to supply any electrical and electronic system, if a power interruption occurs through the Inverter or voltage fluctuations through AVR
Features
- High quality microprocessor control ensures high reliability
- Network stabilization with AVR system
- Battery charger operating also when UPS is off
- Auto-Restart when power line returns
- Pure sine wave output
- Cold Start Function (Power on without mains)
- Built-in protection for USB port and RJ-45
Communication
- Software for all operating systems and environments
- Network, supervisory platform and Shut-Down
- Upsilon 2000
Warranty 24 Months
Recommended to protect:
Server, MV switches, Security systems
| EIML 750/1000/1500/2000 LINE INTERACTIVE Sinusoidal UPS SELECTION GUIDE | ||||
| Model | EIML750 | EIML1000 | EIML1500 | EIML2000 |
| Nominal power | 750 VA/525W | 1000 VA/700W | 1500VA/1050W | 2000VA/1400W |
| Input | ||||
| Nominal voltage | 220/230/240 VAC (optional 110/120VAC) | |||
| Voltage Range | 162-290 VAC (optional 81-145VAC) | |||
| Frequency range | 60/50 Hz (auto Sensing) | |||
| Output | ||||
| Output voltage accuracy (Batt. Mode) | ± 5% | |||
| Output frequency range (Batt. Mode) | 60Hz or 50Hz ± 1Hz | |||
| Transfer time | Typical 2-6ms, 10ms Max. | |||
| Waveform (Batt. Mode) | Pure sine wave | |||
| Batteries | ||||
| Type and number of batteries | 12 V/9 AH x 1 | 12 V/7 AH x 2 | 12 V/9 AH x 2 | 12 V/11 AH x 2 |
| Autonomy (1 PC load @ 120 W) | 5 min. | 5 min. | 5 min. | 5 min. |
| Battery Recharge Time | 6 hours recharge at 90% | |||
| Indicators | ||||
| LCD DISPLAY |
AC Mode, Battery Mode, load level, battery level, volt input, volt output, Overload, failure, low battery |
|||
| Protections | ||||
| Exit protection |
overloading, discharging or overcharging batteries |
|||
| Alarms | ||||
| Battery Mode | Signal every 10 seconds | |||
| Low battery | Signal every second | |||
| Overload | Signal every 0.5 seconds | |||
| Batteries to be replaced | Signal every 2 seconds | |||
| Failure | Continuous signal | |||
| Mechanical data | ||||
| Connections output | IEC sockets | |||
| Dimensions D x W x H (mm) | 350x146x160 | 397x146x205 | ||
| Net weight (kg) | 5.2 | 8.3 | 11.3 | 12.4 |
| Environmental data | ||||
| Relative humidity | 0-90% RH @ 0-40 ° C (non-condensing) | |||
| Noise | < 45db | |||
| Management | ||||
| USB Port |
Supports Windows 98 SE/ME/NT 4. x/2000/2003/XP/Vista/2008/Seven/8.1/10/11 |
|||
Download the datasheet for the Manual Bypass here.
Download the datasheet for the USB Communication Protocol here.
