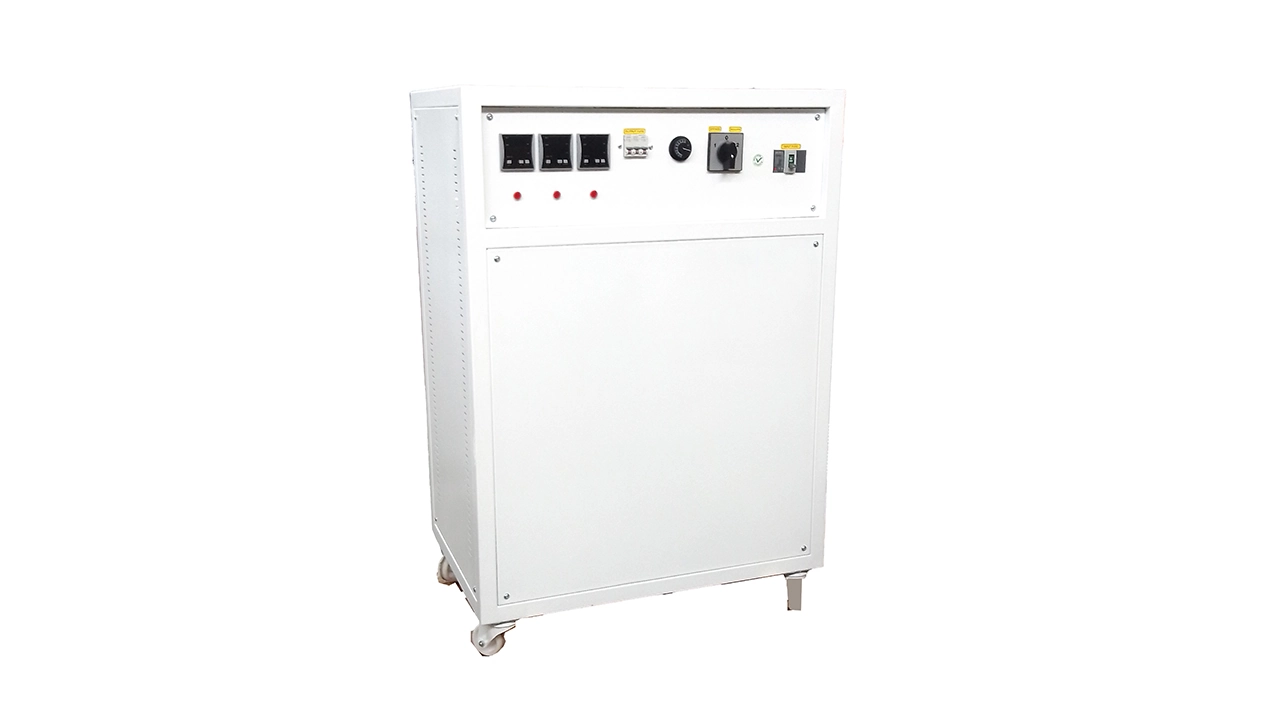

VSE3 – THREE-PHASE ELECTROMECHANICAL VOLTAGE STABILIZERS FROM 10.5KVA TO 3000KVA
Three-Phase Electromechanical Stabilizers, Independent phase regulation, from 10.5KVA TO 3000KVA

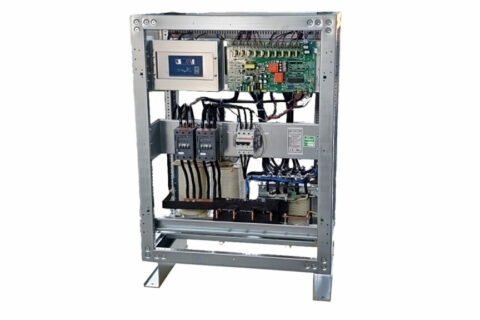

Electromechanical voltage stabilizers utilize a variable toroidal transformer, a BUCK-BOOST transformer, and an electronic circuit that controls the rotation of the variable transformer, thereby regulating the output voltage. With the control system, in a very fast response time, the high-torque regulation motor adjusts small voltage variations very quickly. The servomotor is taken out of service by limit switches when it is outside its operating limits and by the control circuit when the output voltage is automatically adjusted to the set value. When regulation is complete, the motor power is cut off with the help of an electronic opening circuit, operating in maximum silence. Regulation occurs independently on each phase. The system is equipped with a bypass switch that allows the load to be powered by the mains voltage in case of malfunction or necessity. Using the setting buttons, it is possible to adjust the output voltage, accuracy range, regulation speed, and high-low voltage limits. It is also possible to adjust the maximum current control and the relative hysteresis time. Three displays show the input and output voltage on each phase.
The new VSE3 stabilizers offer features such as:
- Microprocessor controlled
- Adjustable on the LCD control panel
- Output voltage protection and tolerance
- Protection delay
- Minimum-Maximum Voltage Limit
- Servo Motor Speed
- ON/OFF alarm

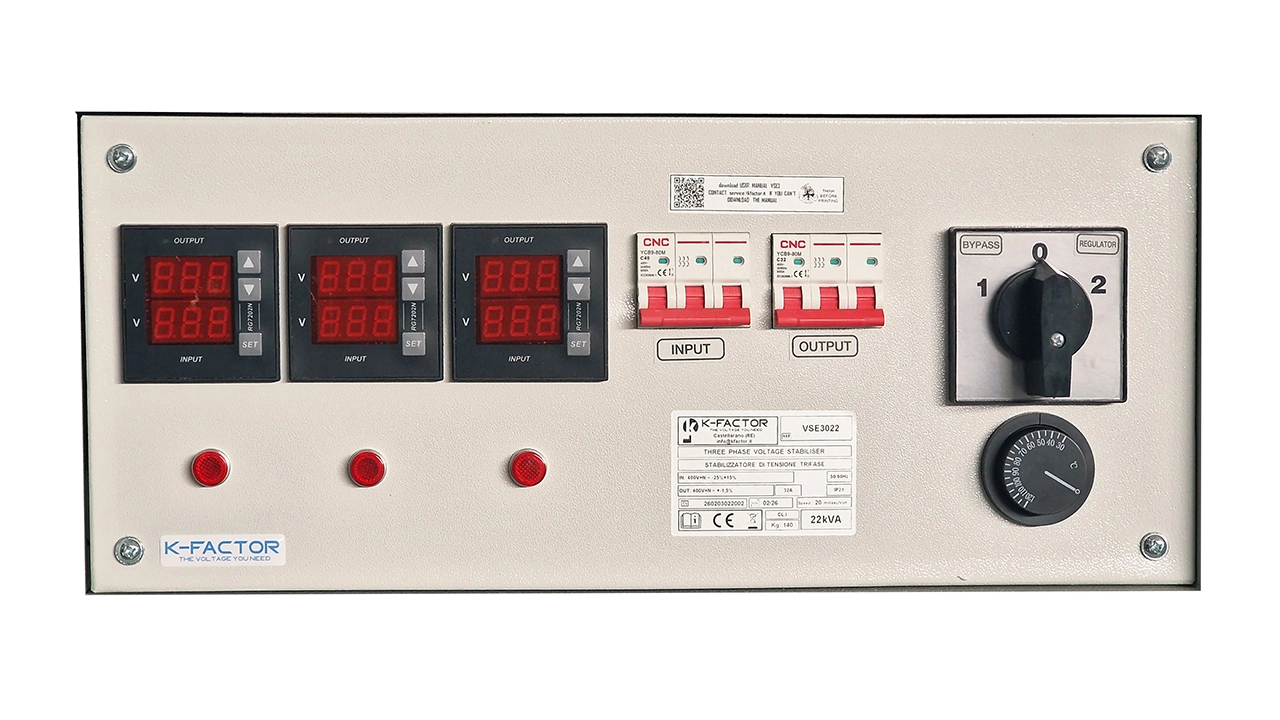

- 3 x LED displays, input/output voltage
- No sine waveform distortion introduced
- Adjustment speed 90-200 V/sec., wide adjustment range
- Overheating protection
- High efficiency
- Overload and short-circuit protection
- Manual bypass
- Intelligent cooling fan
- IP20 protection class
- ISO 9001:2015 Certification
- 1 year warranty
- 10 years spare parts support warranty, experienced after-sales service
THREE-PHASE ELECTROMECHANICAL STABILIZERS – OPERATING PRINCIPLE
| MODEL VSE3xxxx | 010 | 015 | 022 | 030 | 045 | 060 | 075 | 100 | 120 | 150 | |
| KVA Power | 10.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 100 | 120 | 150 | |
| INPUT | |||||||||||
| Input voltage | 400Vac 3ph + N | ||||||||||
| Voltage range | 300Vac ÷ 460Vac (other ranges available on request, such as 190-415 and 310-485) | ||||||||||
| Input Frequency | 47 ÷ 64 Hz | ||||||||||
| OUTPUT | |||||||||||
| Output voltage | 400Vac (adjustable 380:415V) 3ph + N | ||||||||||
| Output Accuracy | ± 1.5% | ||||||||||
| Output current A | 15 | 21 | 32 | 43 | 65 | 86 | 108 | 144 | 174 | 217 | |
| Overload capacity | 200% load 10″ / 150% load per 1′ / 120% load per 10′ / 110% load per 30′ | ||||||||||
| Output frequency | 47 ÷ 64 Hz (as input frequency) | ||||||||||
| Speed adjustment | 90V/sec | ||||||||||
| Efficiency | min. 97% | ||||||||||
| Max load unbalance | 100% | ||||||||||
| Display | 3 digital meters with input/output voltage reading on each phase, events log, settings
Mains presence led |
||||||||||
| PROTECTIONS | |||||||||||
| Ingress Protection | Automatic circuit breaker | ||||||||||
| Output Protections | Low-High Voltage, Low-High Frequency, via contactor output | ||||||||||
| By-Pass | Manual by-pass included | ||||||||||
| Output protection | Automatic circuit breaker | ||||||||||
| OTHER DATA | |||||||||||
| Communication | Optional wi-fi module | ||||||||||
| Cooling | Forced ventilation regulated by adjustable thermostat | ||||||||||

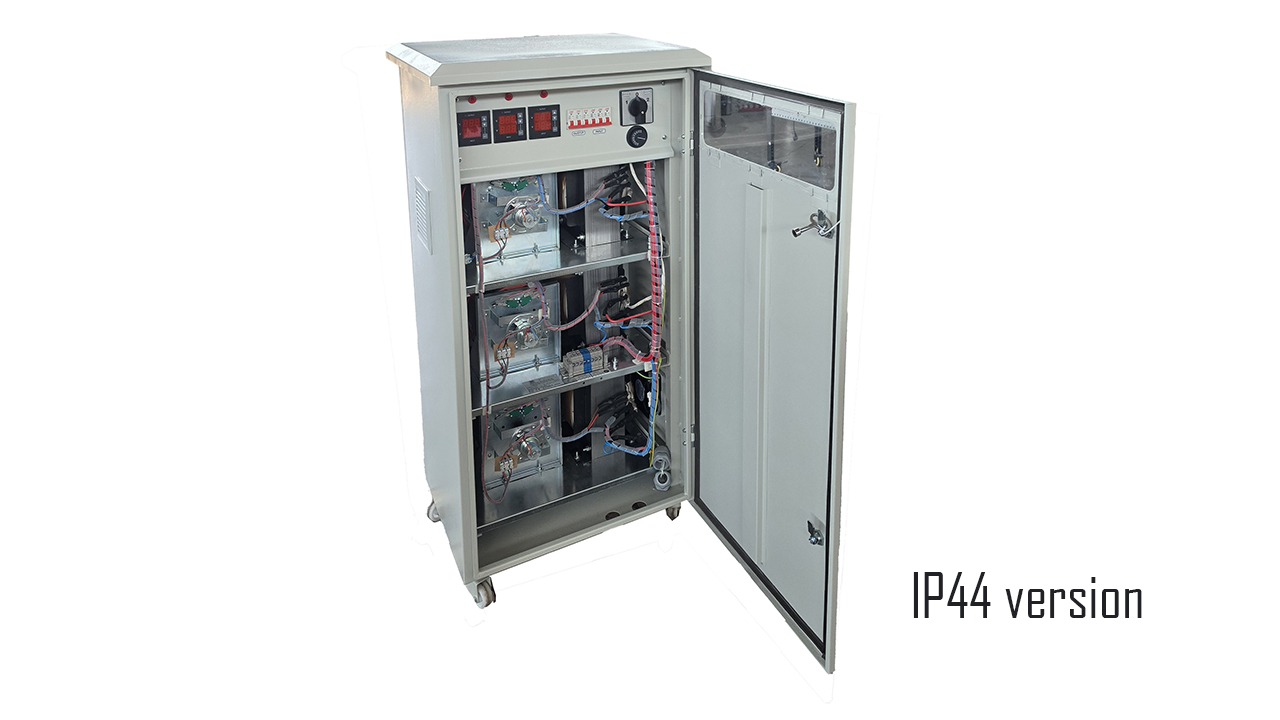

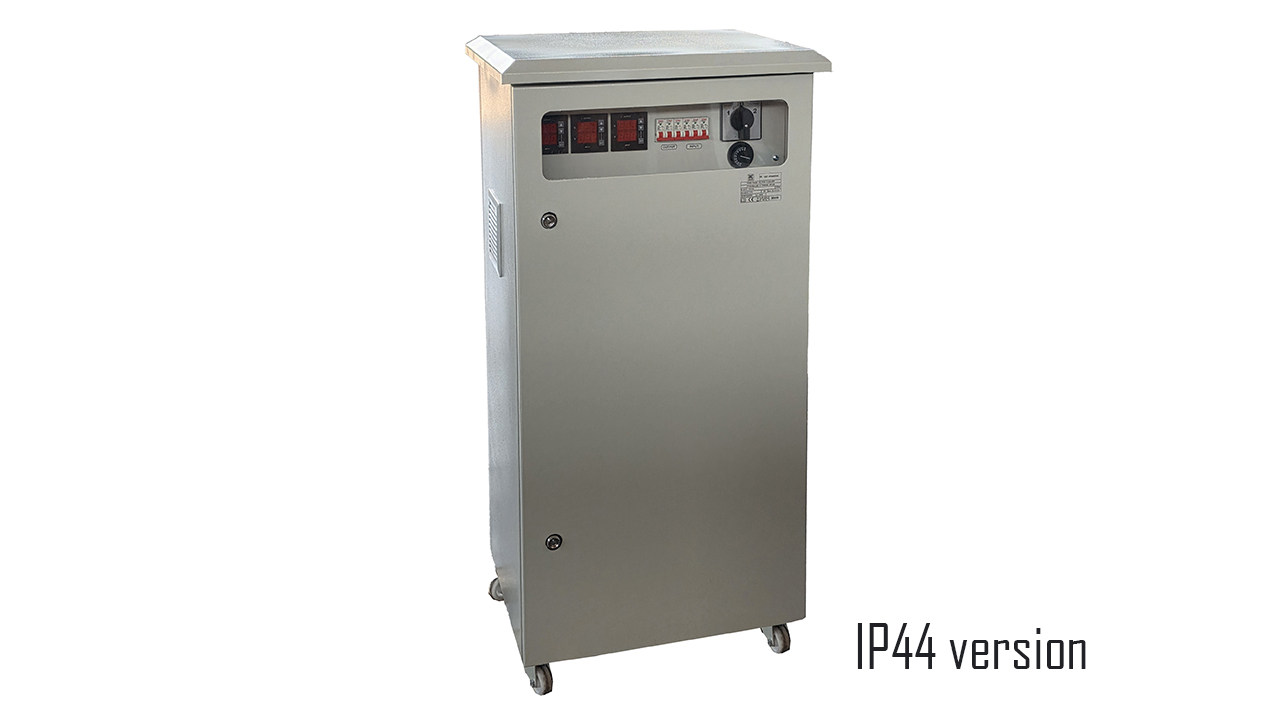

| Protection class | IP20 (IP54 protection available on request) | ||||||||||
| Max. ambient temp. | -5° C ÷ +40° C | ||||||||||
| Altitude | 1000 m a.s.l. without derating | ||||||||||
| Relative humidity | 95% (non-condensing) | ||||||||||
| Sound pressure | < 50dB(A) | ||||||||||
| Colour | RAL7035 | ||||||||||
| Dimensions WxDxH cm | 50x42x105 | 60x42x120 | 80x60x128 | 90x70x136 | 180x120x120 | ||||||
| Weight kg | 145 | 155 | 185 | 235 | 325 | 365 | 460 | 530 | 620 | 1100 | |
| MODEL VSE3xxxx | 3200 | 3250 | 3300 | 3400 | 3500 | 3600 | 3800 | 31000 | 31250 | 31600 | 32000 | 32500 |
| KVA Power | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 |
| INPUT | ||||||||||||
| Input voltage | 400Vac 3ph + N | |||||||||||
| Voltage range | 300Vac ~ 460Vac (other ranges available on request, such as 190-415 and 310-485) | |||||||||||
| Input Frequency | 47 ÷ 64 Hz | |||||||||||
| OUTPUT | ||||||||||||
| Output voltage | 400Vac (adjustable 380:415V) 3ph + N | |||||||||||
| Output Accuracy | ± 1.5% | |||||||||||
| Output current | 289 | 362 | 434 | 578 | 724 | 869 | 1159 | 1449 | 1816 | 2318 | 2898 | 3623 |
| Overload capacity | 200% load 10″ / 150% load per 1′ / 120% load per 10′ / 110% load per 30′ | |||||||||||
| Output frequency | 47 ÷ 64 Hz (as input frequency) | |||||||||||
| Speed adjustment | 90V/sec | |||||||||||
| Efficiency | min. 97% | |||||||||||
| Max load unbalance | 100% | |||||||||||
| Display | 3 digital instruments with input/output voltage reading on each phase
mains presence indicators |
|||||||||||
| PROTECTIONS | ||||||||||||
| Ingress Protection | Input disconnector | |||||||||||
| Output Protections | Low-high voltage via output contactor | |||||||||||
| By-Pass | Manual by-pass included via inlet diverter switch | |||||||||||
| MCB Output | Optional | |||||||||||
| MCB input | Optional | |||||||||||
| OTHER DATA | ||||||||||||
| Cooling | Forced ventilation controlled by adjustable thermostat | |||||||||||
| Protection class | IP20 (IP54 protection available on request) | |||||||||||
| Max. ambient temp. | -5° C ÷ +40° C | |||||||||||
| Altitude | 1000 m a.s.l. without derating | |||||||||||
| Relative humidity | 95% (non-condensing) | |||||||||||
| Sound pressure | < 50dB(A) | |||||||||||
| Colour | RAL7035 | |||||||||||
| Dimensions WxDxH cm | 180x120x120 * | 180x120x180 * | T.B.A. | |||||||||
| Weight kg. | 1250 | 1350 | 1400 | 1550 | 1650 | 1700 | 1795 | 2700 | 3550 | 4200 | 5600 | 6500 |
